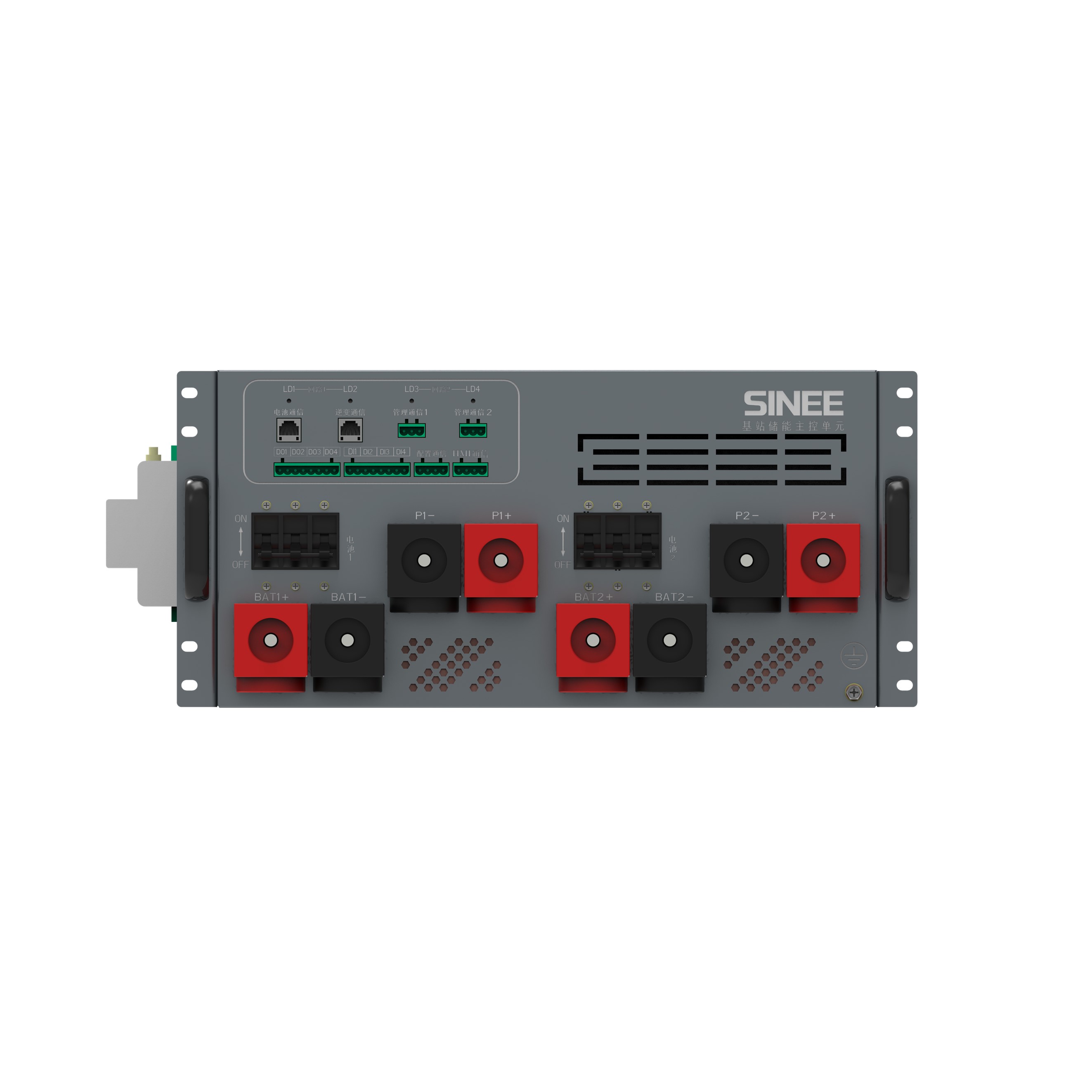

Energy Storage System

• DC/AC 6kW-12kW / 11-52kWh

• Lead Carbon / Lithium Battery

• EMS+smart meter / BMS / PCS

• Rack mount

• MTBF>100000 Hrs

Features
Slide to the left to view >

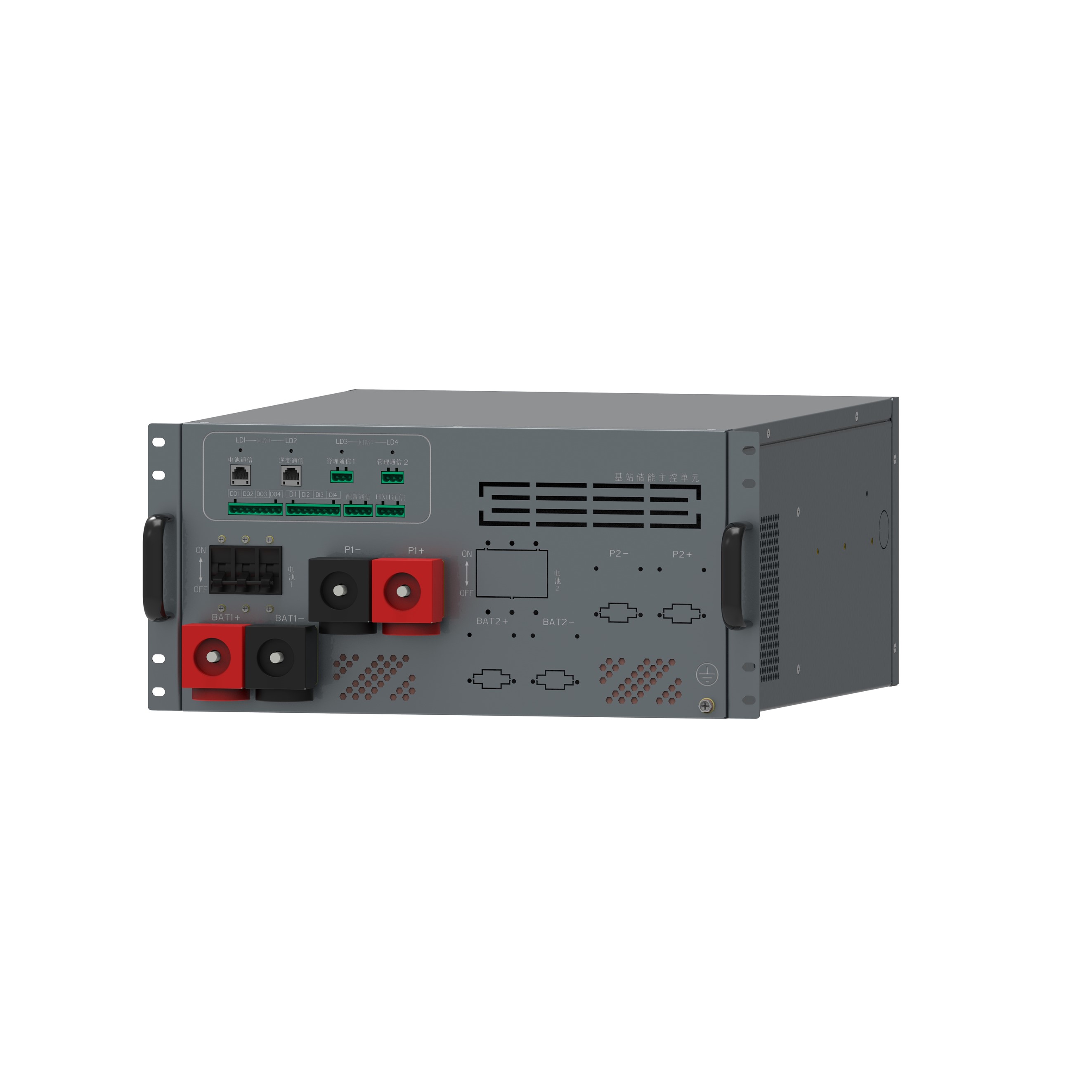

Energy Storage System for communication base.png

The one-stop energy storage system for communication base stations is specially designed for base station energy storage.

Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods,

reducing peak load demand and saving electricity costs, thus achieving the purpose of improving load characteristics and participating in system peak regulation,

while saving electricity costs and maximizing arbitrage.


System Integration:Integrate EMS / BMS / PCS / power distribution / battery / operation platform to provide one-stop system solutions


Independent Control:Each group of batteries is independently controlled, without risk of circulation


Perfectly Compatible:Compatible with mainstream batteries on the market, allowing batteries of different types, capacities and batches to be used in parallel


Safe and Stable:Thermal runaway warning/DC circuit breaker/explosion-proof structure triple protection design


Minimalist Deployment:Modular design enables quick disassembly and assembly, and it only takes 15 minutes to complete the installation of a base station


Frontal Maintenance:No need to reserve maintenance channels, supports full frontal maintenance, and frees up base station space.


Intelligent Operation:Thousands of stations are interconnected to accurately calculate energy storage revenue, remotely monitor equipment status, and achieve efficient operation and maintenance

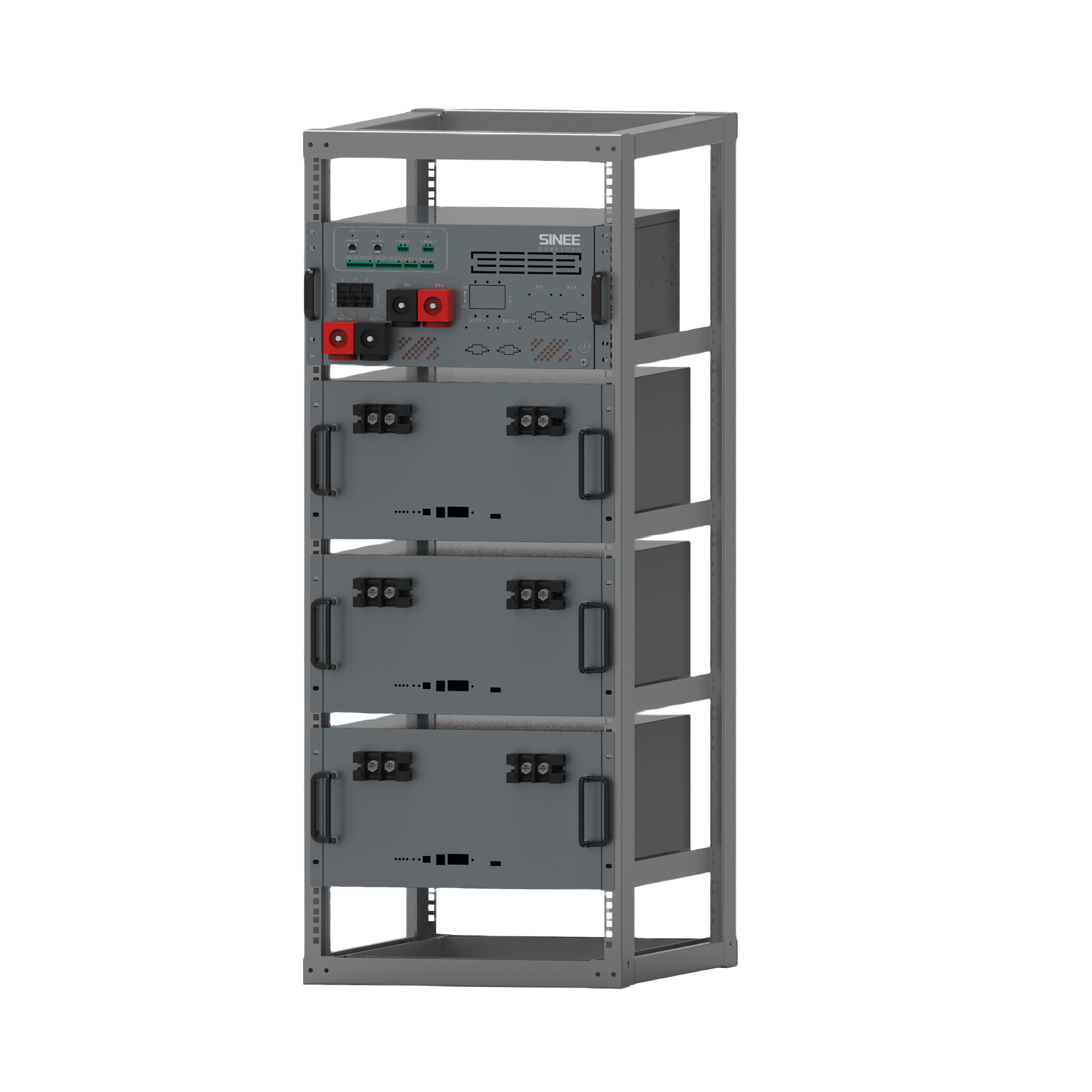

Energy Storage System.png

Specifications
Slide to the left to view >

Lead Carbon   SystemLithium Battery   System
Mechanical
    Properties
SpecificationRack mountRack mount

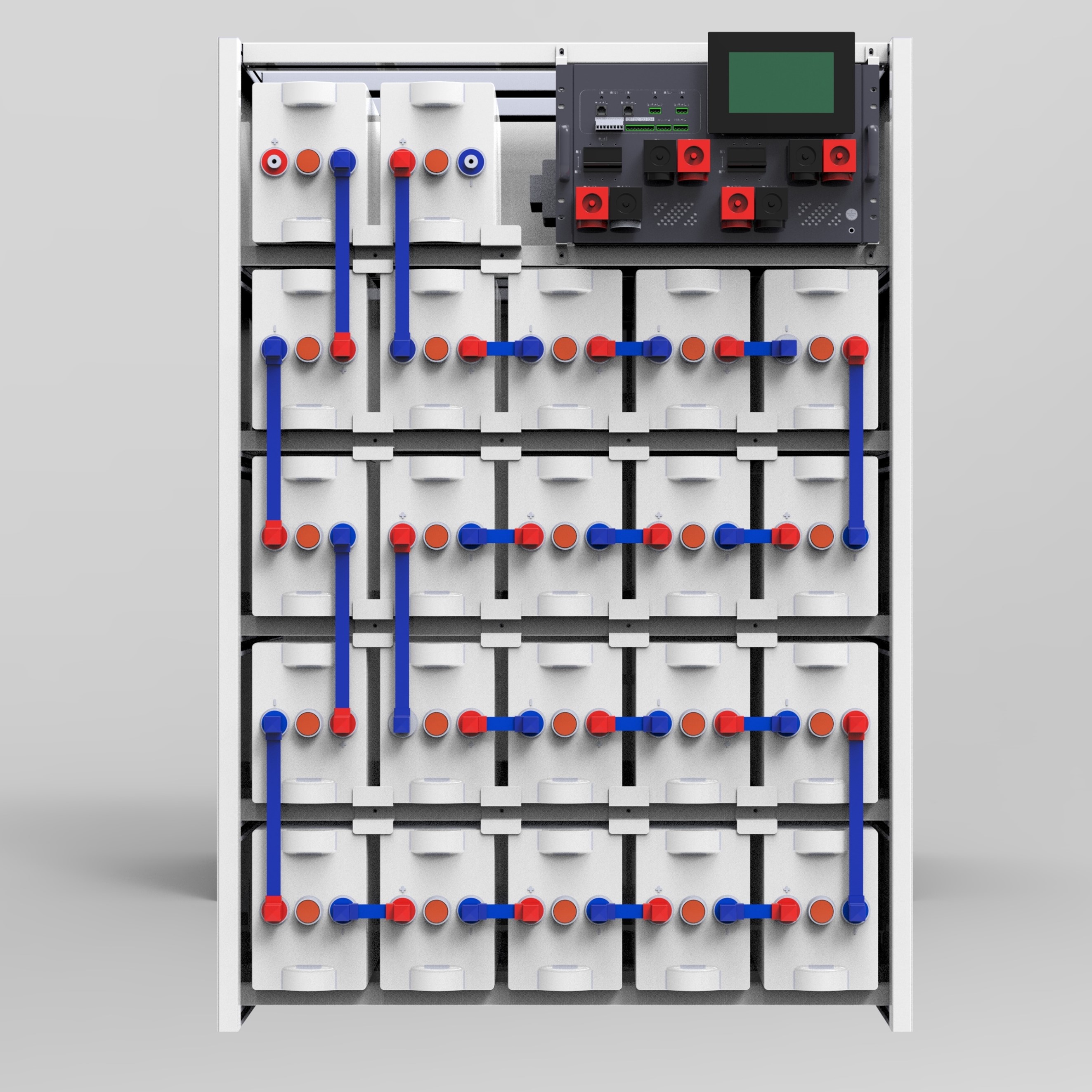

Weight860kg   (2V500Ah 22 pieces/group system)
    Modular capacity can be increased according to needs

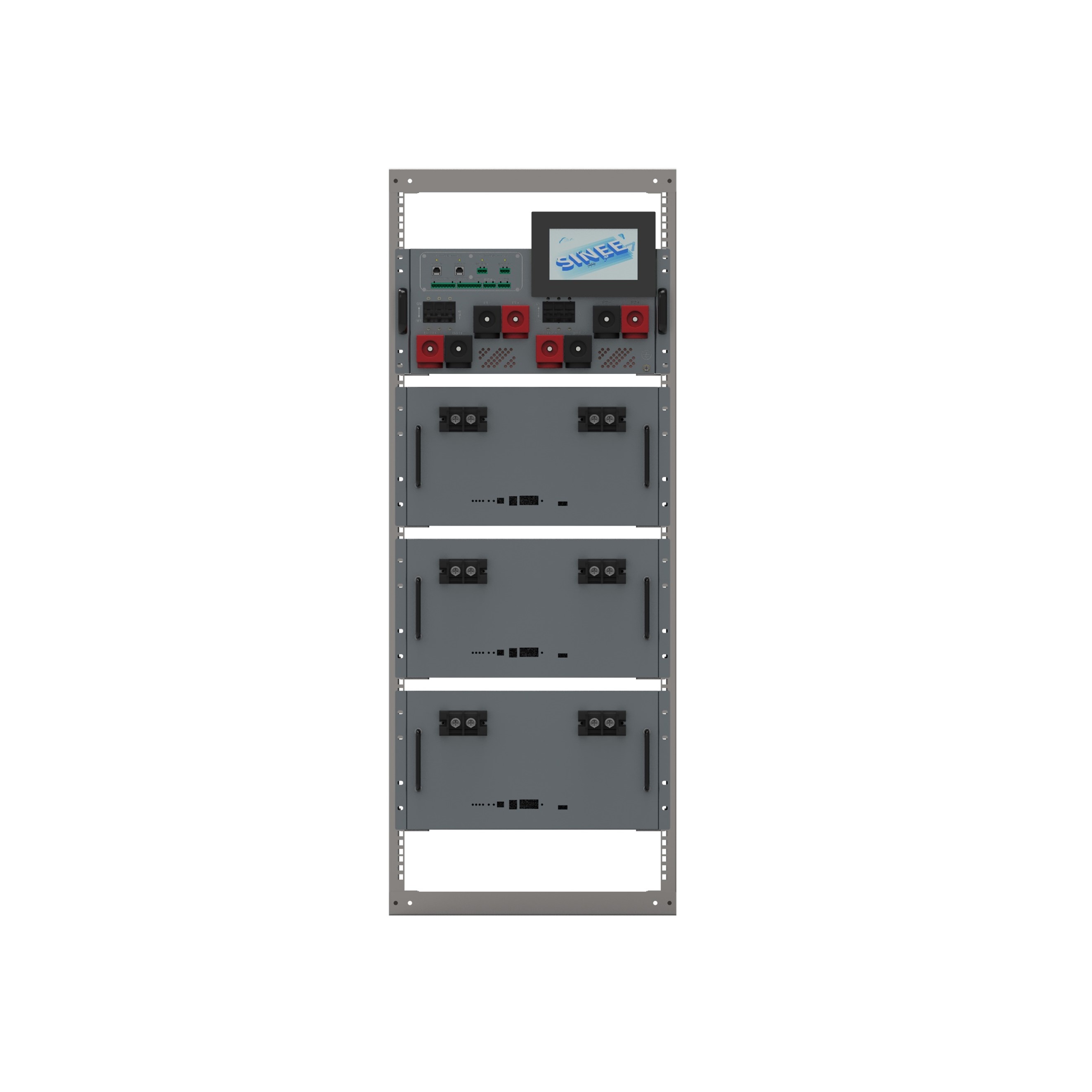

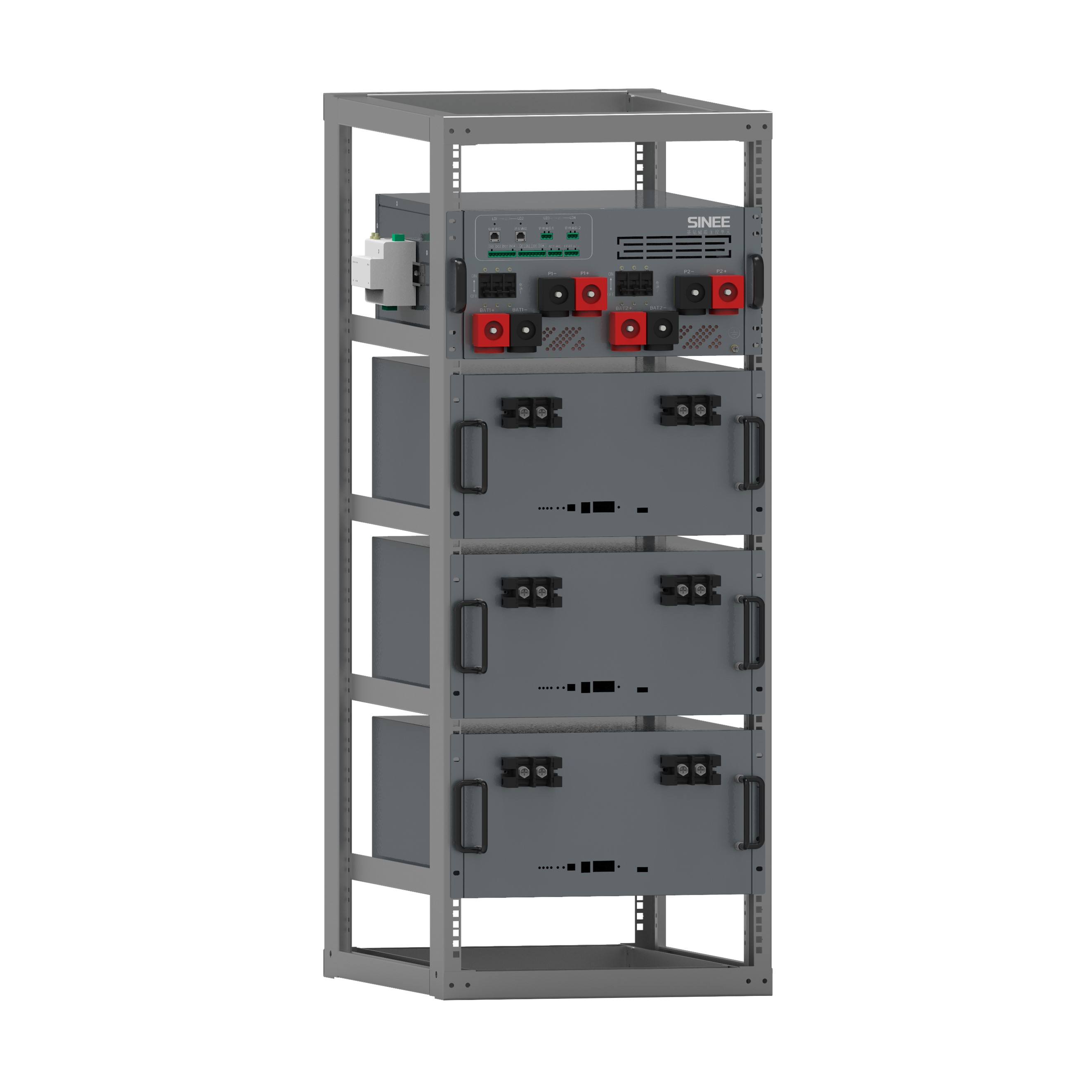

370kg   (3.2V230Ah 15 pieces/group system,
    3 groups) can be modularly expanded according to needs
Size(L*W*H)1040mm*540mm*1485mm680mm*489.5mm*1528mm
Cooling MethodAir CoolingAir Cooling
Electrical
    characteristics
Power22kWh33.12KWh
VoltageDC bus side:   42VDC~58VDCDC bus side:   42VDC~58VDC
Energy storage battery pack:
    38.5VDC~53.9VDC
Energy   storage battery pack:
    38.5VDC~53.9VDC
CurrentCharging: 1A~109A,   discharging: 0A~95ACharging: 1A~109A,   discharging: 0A~95A
Voltage stabilization
    accuracy
≤1%≤1%
Overcurrent
    protection
Max:150AMax:150A
Power6kW,   12kW, 18kW, 24kW, optional
    configurations
6kW,   12kW, 18kW, 24kW, optional
    configurations
Efficiency≥95%≥95%
Output ripple peak
    to peak
Ripple   peak-to-peak value ≤200mV
    (YD/T 731)
Ripple   peak-to-peak value ≤200mV
    (YD/T 731)
MTBF>100000 Hours   (25℃)>100000 Hours   (25℃)
Northbound
    communication
    external interface
Communication   method: Isolated RS485*1Communication   method: Isolated RS485*1
Support protocol content:
    support modbus protocol format
Support   protocol content:
    support modbus protocol format
Southbound
    communication
    external interface
Communication   method: Isolated RS485*1Communication   method: Isolated RS485*1
Usage
    Environment
Ambient
    Temperature
-20—50℃ (working   around 25℃)-20—50℃ (working   around 25℃)
Relative humidity≤95%≤95%
Atmospheric
    Pressure
61kPa~113kPa61kPa~113kPa
Installation
    Environment
IndoorIndoor
Protection LevelIP21IP21
EMCElectrostatic
    discharge
    immunity type
GB/T 17626.2-2018   Level 4 requirementsGB/T   17626.2-2018 Level 4 requirements
Conducted
    disturbance limits
GB 9254-2008 CLASS AGB 9254-2008 CLASS A
Radiation
    disturbance limits
GB 9254-2008 CLASS BGB   9254-2008 CLASS B
Surge (impact)
    anti-interference
GB/T 17626.5-2019GB/T   17626.5-2019
Lightning
    protection
YD5098-2005YD5098-2005


Installation Dimensions
