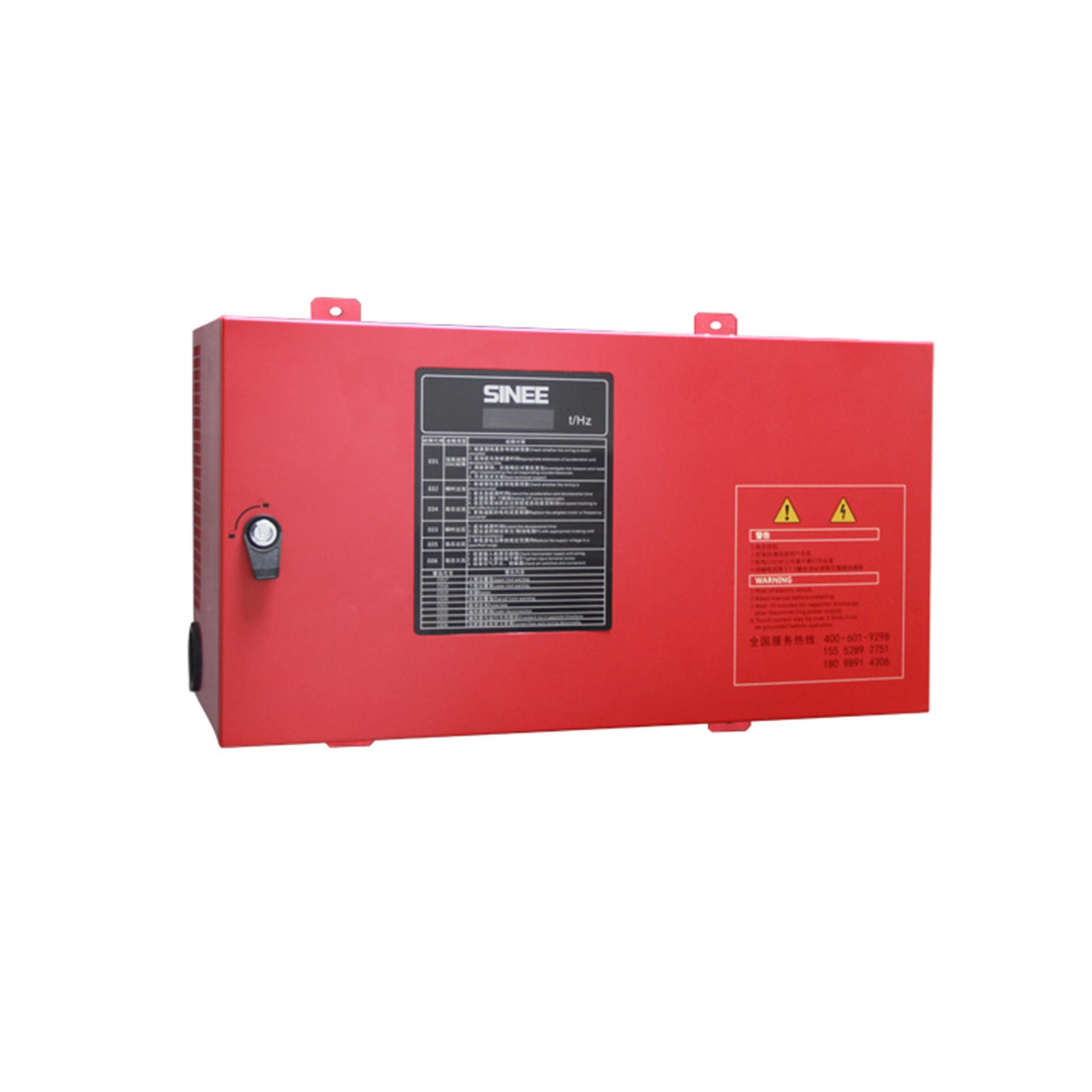

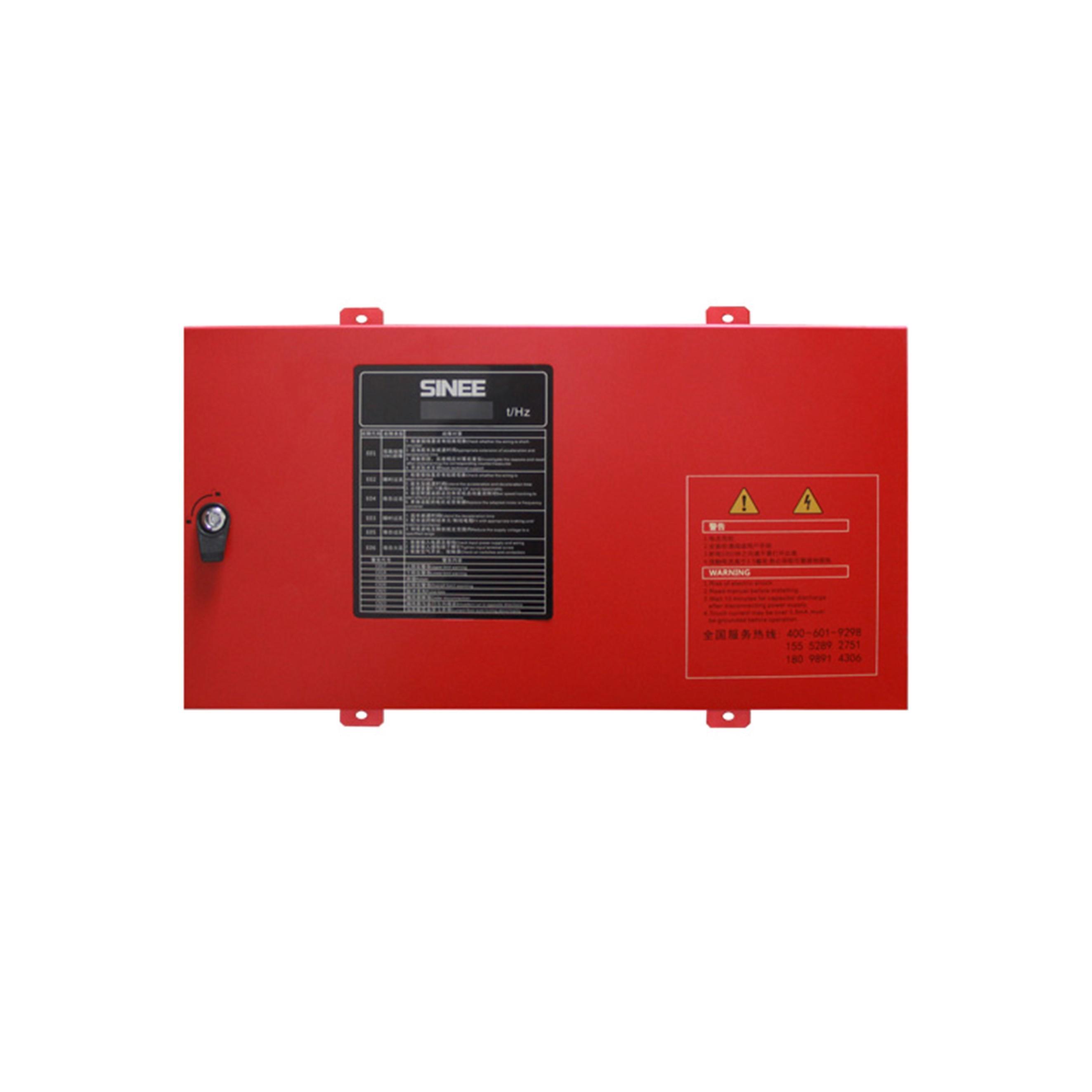

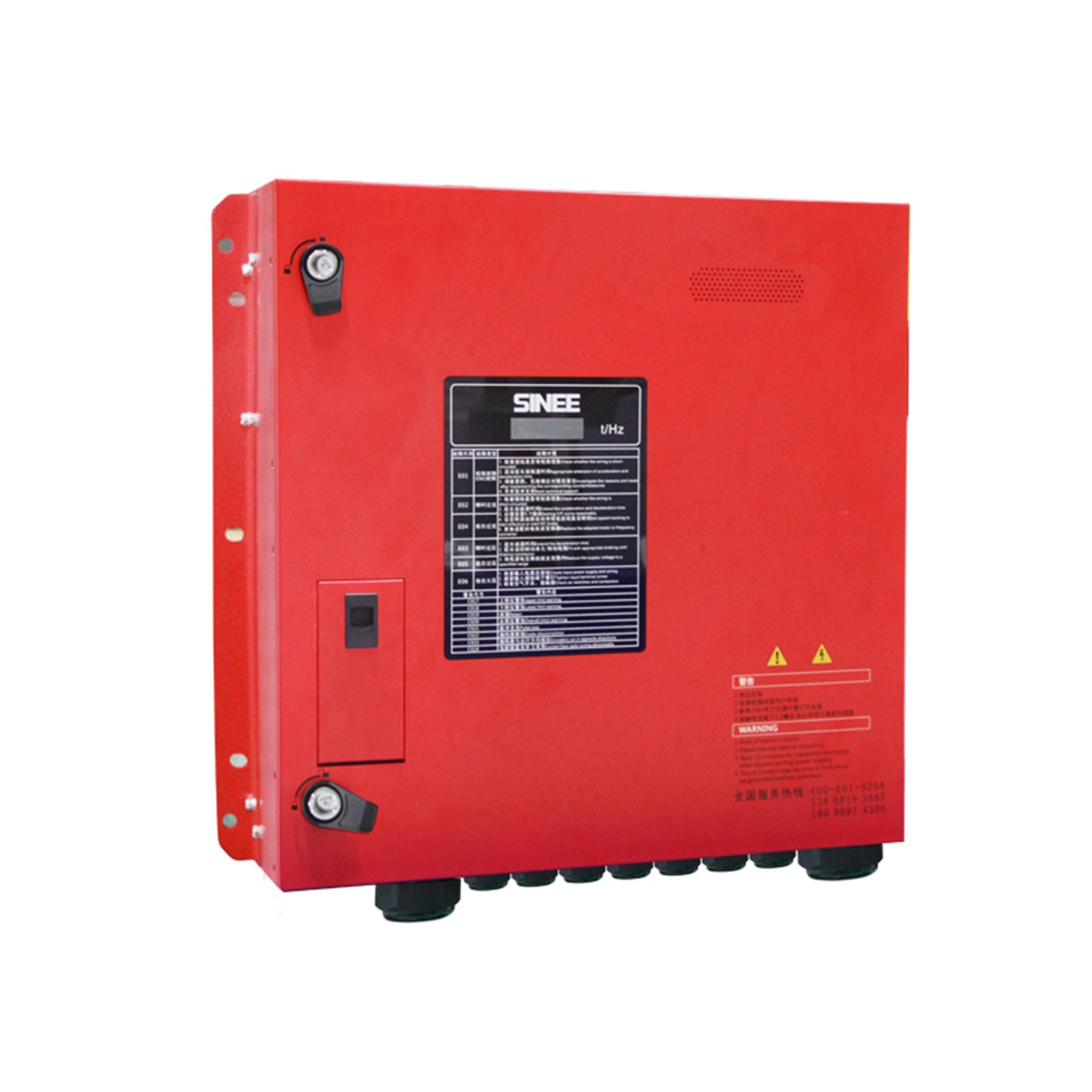

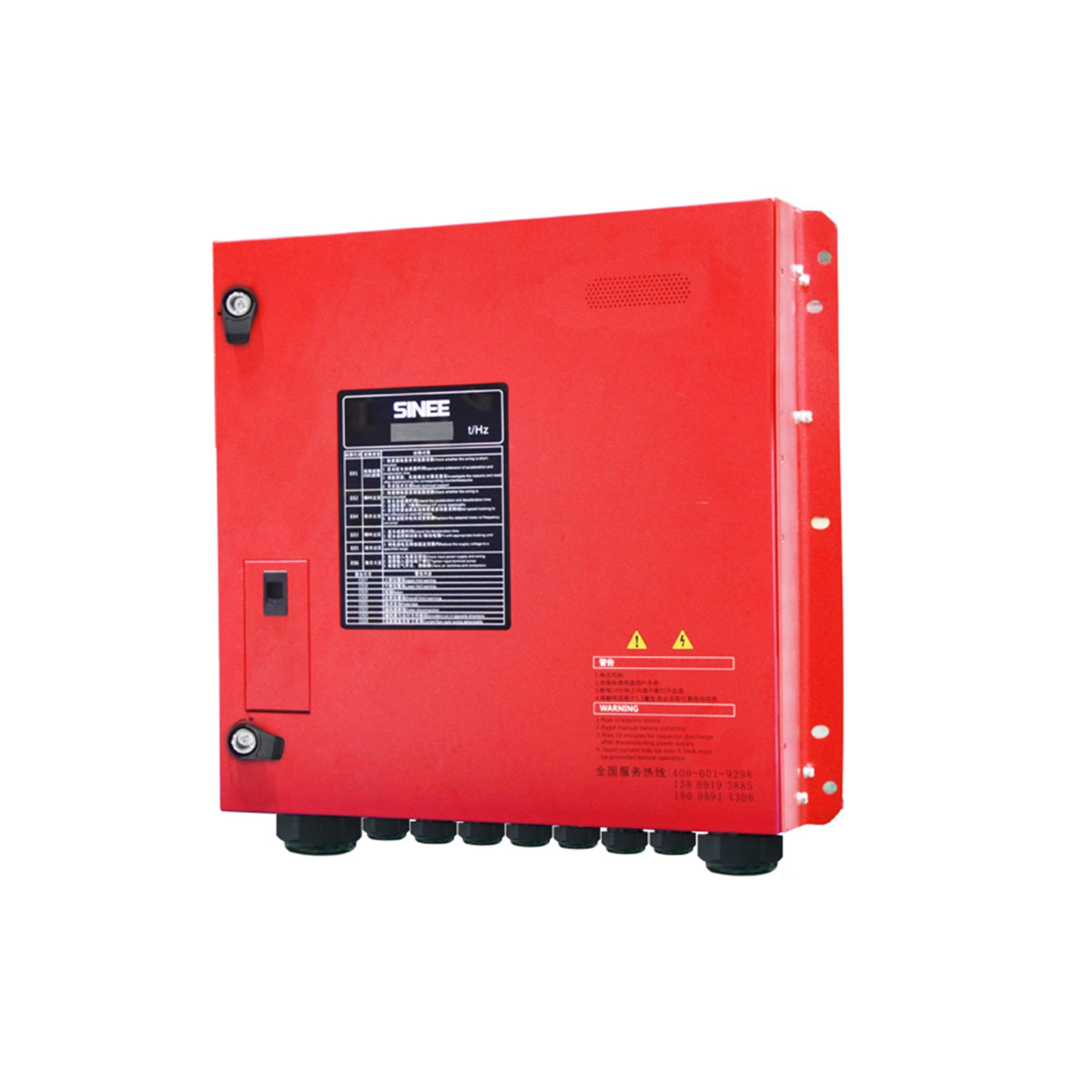

EM530C Series Lift Integrated Controller
•Five functions in one: variable frequency drive; brake unit; low voltage control logic; weight limiter; brake power supply;
•Save space to the greatest extent: miniaturization; installation in cage/through wall;
•The product is more reliable and safe: developed according to the IPD process;
•More comfortable ride: brake control logic; zero-speed torque hold function.
| Function code | F00.00～F99.99：function code number | ||
| Name | The full name of the function code. "Reserved" means that this function code is temporarily reserved and has no practical significance. | ||
| Parameter Description | A brief description of the function code. Mainly divided into the following 3 categories: | ||
| Overall | The value of the entire function code indicates the current parameter selection or current meaning | ||
| Binary | Each binary bit indicates a selection or current meaning of the current function code | ||
| Unit | The metric unit of the function code. The units and abbreviations are as follows: | ||
| Hz | kW | us | |
| kHz | kWh | ms | |
| % | MWh | s | |
| V | mΩ | min | |
| A | mH | h | |
| rpm | ℃ | m | |
| ★: %: Different benchmarks for different physical quantities; kWh: kilowatt-hour, commonly known as degrees. | |||
| Factory default | The factory setting value of the function code, or the value when the parameter is restored to the factory value (F12.14=1), the description methods are mainly divided into the following three categories. | ||
| Number（Such as 50.00） | For each power section, the factory value of this function code is the current value | ||
| Model confirmed | The factory value of this function code is different for different power segments | ||
| XXX | Due to the power range, different batches, etc., the factory value of this function code is different. | ||
| Attributes | The change attribute of the function code (whether the change is allowed and the change condition) are described as follows: | ||
| ● | Can be changed during operation: the current function code can be changed in any state | ||
| 〇 | It cannot be changed during operation: except for the running state, the current function code can be changed | ||
| × | Read-only: In any state, the current function code cannot be changed | ||
| Model | Applicable motor power（kW） | Rated output current（A） |
| EM530C1-037-3B-0-(P) | 37 | 75 |
| EM530C2-037-3B-0-(P) | ||
| EM530C2-055-3B-0-P | 55 | 110 |
| EM530C2-075-3B-0-P | 75 | 150 |
| Model | W | W1 | W2 | H | H1 | H2 | H3 | H4 | D | D1 | d | |
| EM530C1-037-3B-0-P | 680 | 420 | 330 | 370 | 413 | 440 | / | / | 240 | / | 9*11 | |
| EM530C2-037-3B-0-P | 580 | 610 | 630 | 581.5 | 500 | 200 | 92 | 37 | 220 | 101.7 | 13*15/13 | |
| EM530C2-055-3B-0-P | 600 | 638 | 656 | 720 | 656 | 260 | 100 | 32 | 255 | 105 | 11.5*13.5 10*20 | |
| EM530C2-075-3B-0-P | 600 | 638 | 656 | 720 | 656 | 260 | 100 | 32 | 255 | 105 | 11.5*13.5 10*20 | |
| Model | Terminal symbol | terminal screw | Torque （N.m) | Wire Diameter （mm2） |
| EM530C1-037-3B-0-(P) | R S T N P PB U V W | M4 | 1.5～2.0 | 4 |
| M5 | 3.0～4.0 | 10 | ||
| M6 | 4.0～5.0 | 16 | ||
| EM530C2-055/075-3B-0-P | R S T N P PB U V W | M4 | 1.5～2.0 | 4 |
| M5 | 3.0～4.0 | 10 | ||
| M6 | 4.0～5.0 | 16 | ||
| M8 | 10.0～14.0 | 35 |
