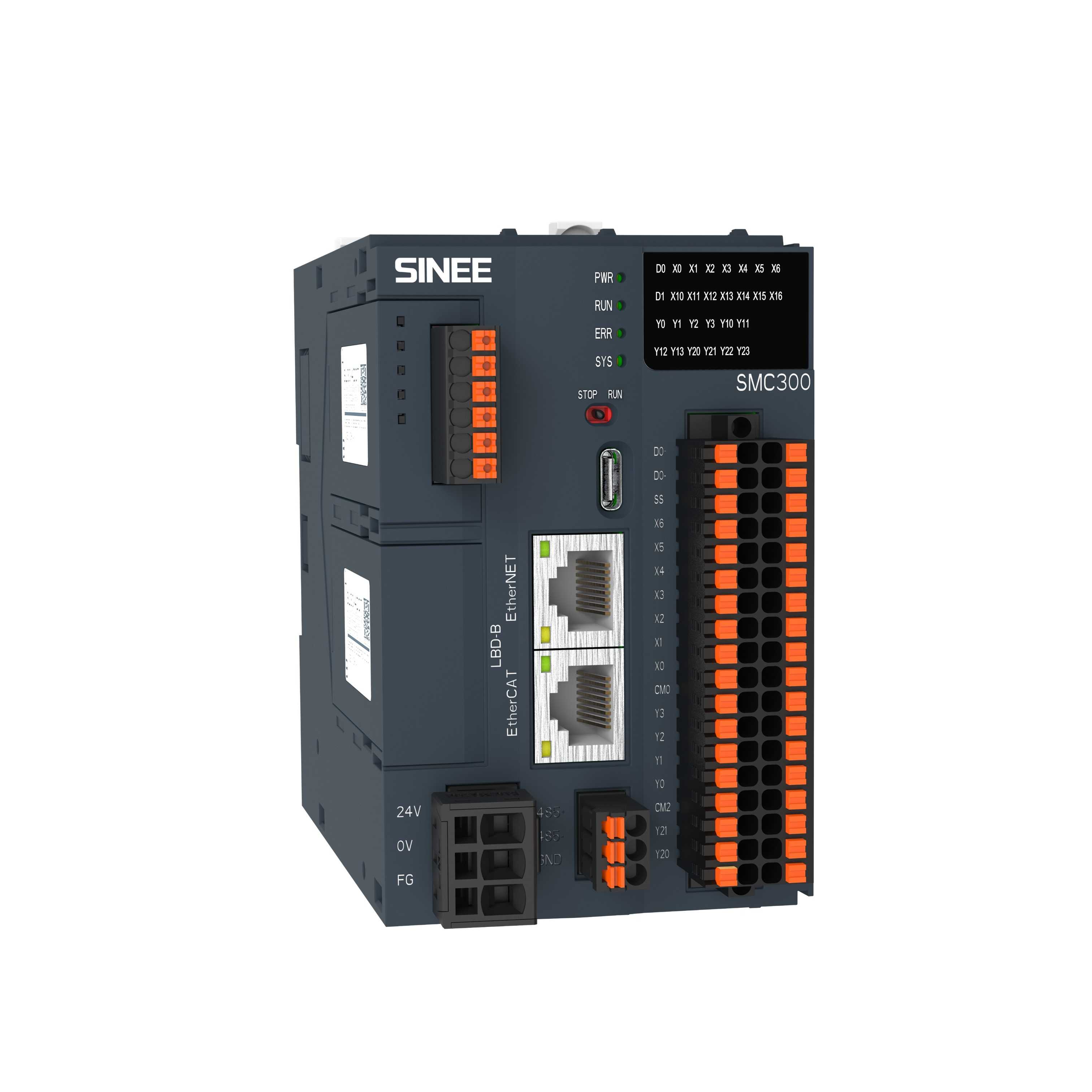

• 6 Axes- 32 Axes
• 24V ± 10% 3A Input
• EthernetIP/EtherCAT/CANopen/ModbusTCP/ModbusRTU
• Support 2 Left/1 Right Extenion
• DI/DO/AI/AO
• 6 Axes- 32 Axes
• 24V ± 10% 3A Input
• EthernetIP/EtherCAT/CANopen/ModbusTCP/ModbusRTU
• Support 2 Left/1 Right Extenion
• DI/DO/AI/AO

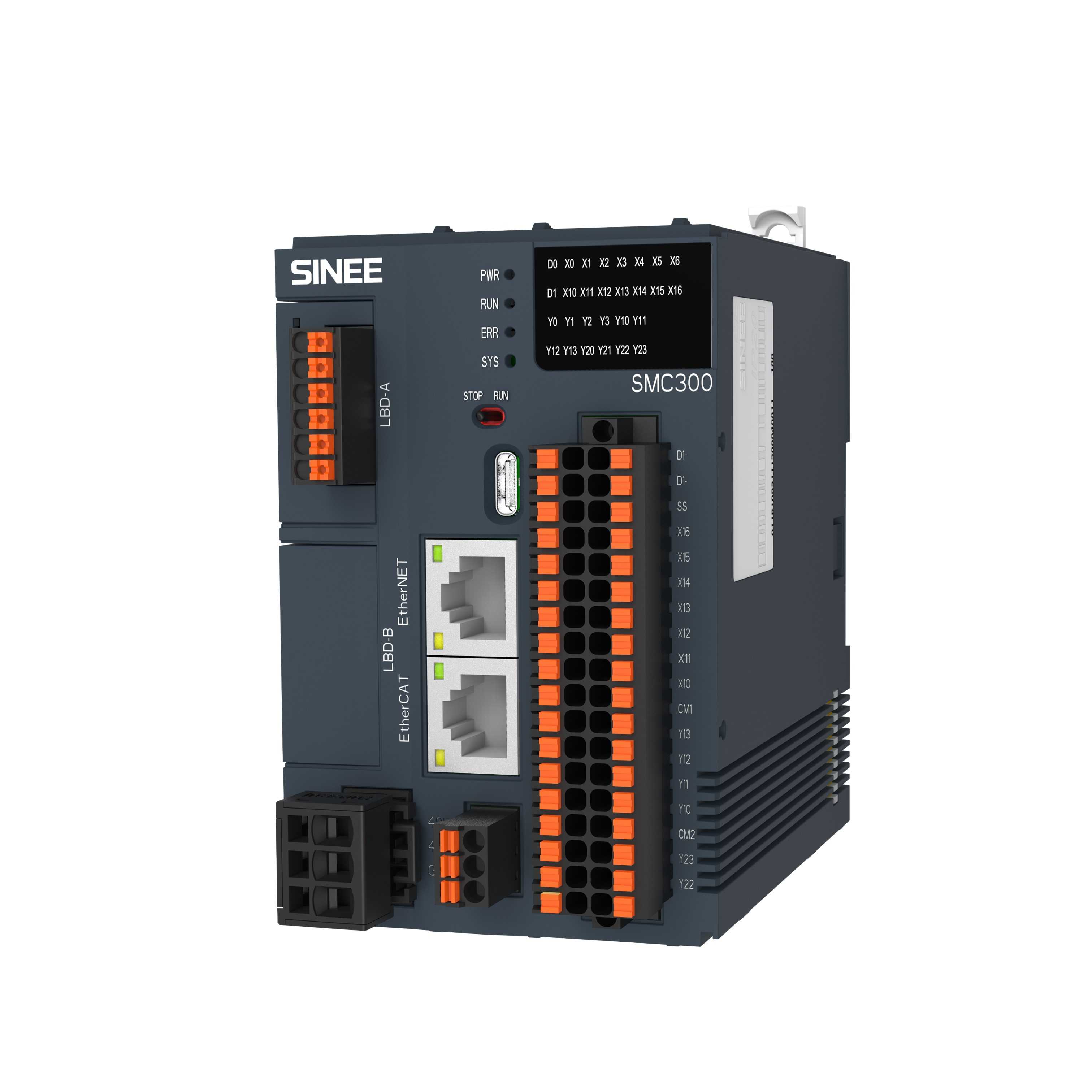

| Serial | Type | Interface ID | Definition | Illustrate |
| 1 | Silk screen | / | Logo | / |
| 2 | Indicator light | PWR | Power status | / |
| RUN | Run/stop state | / | ||
| ERR | Network Error | E bus, C bus error indication | ||
| SYS | system status | Steady red light: system error; | ||
| Blinking green light: wink; | ||||
| Steady green light: the system is normal | ||||
| 3 | LED indication | / | 16 input | / |
| 12 output | ||||
| 4 | DIP switch | RUN | control system operation | / |
| STOP | control system stop | |||
| 5 | I/O terminal | / | 16 input | For detailed definitions, please refer to the manual |
| 12 output | ||||
| 6 | Expand right | / | Right expansion module interface | For detailed definitions, please refer to the manual |
| 7 | RS485 interface | 485+ | 485 communication+ | / |
| 485- | 485 communication- | |||
| GND | 485 communication place | |||
| 8 | Power interface | +24V | DC 24V input | / |
| 0V | ||||
| PG | PG | |||
| 9 | Ethernet port 2 | EtherCAT | EtherCAT communication | / |
| 10 | Ethernet port 1 | EtherNET | Ethernet communication | Fixed IP: 192.168.1.8 |
| 11 | USB | Type-C | For firmware upgrade | / |
| 12 | Left extension accessory | LBD-A | Left expansion card | For detailed definitions, please refer to the manual |
| LBD-B |
| Items | Specification Description |
| Input Power Specifications | 24V ± 10%，3A |
| Under voltage level | 18V |
| Power-down save time | 1.7s |
| Operating temperature | -10 ~ +55℃ |
| Storage temperature | -25 ~ 80℃ |
| Relative humidity | 5%~95% (no condensation) |
| Altitude | 2000m |
| Pollution level | level 2 |
| Degree of protection | IP20 |
| Cooling method | Natural cooling |
| Installation method | Rail installation 35mm |
| Program data capacity | 10MB |
| Power-down storage capacity | 512KB |
| Ethernet | 1.Modbus TCP protocol |
| 2.10/100M Transmission rate | |
| 3. User program download and debugging (only supports IPv4) | |
| EtherCAT | Synchronization cycle 4ms/32 axes |
| RS485 serial communication | 1. Serial port number: COM1 |
| 2. Baud rate: 4800-115200 | |
| Expansion method | Left and right local expansion |
| Programmatically | IEC 61131-3 Programming language(LD、FBD、IL、ST、SFC、CFC) |
| USB | Type_Cinterface, firmware upgrade |
| ① | Product Category | ② | Series | ||
| SMC：Motion Controller | 300:300 Series | ||||
| ③ | Axes Quantity | ④ | Command type | ||
| 032:32 Axes | E：EtherCAT | ||||
| ⑤ | Customization | ||||
| Serial | Model | Description |
| 1 | SMC300-032E | EtherCAT master controller capable of controlling 32 axes |
| 2 | SMC300-016E | EtherCAT master controller capable of controlling 16 axes |
| 3 | SMC300-012E | EtherCAT master controller capable of controlling 12 axes |
| 4 | SMC300-008E | EtherCAT master controller capable of controlling 8 axes |
| 5 | SMC300-006E | EtherCAT master controller capable of controlling 6 axes |
| Optional items | SMC300 Series | Quantity of accessories | Specification | Remark |
| Host and optional accessories | ||||
| 1 | SMC300 Series Motion controller host | 1 | SMC-300-006E | EtherCAT master controller capable of controlling 6 axes |
| SMC-300-008E | EtherCAT master controller capable of controlling 8 axes | |||
| SMC-300-0012E | EtherCAT master controller capable of controlling 12 axes | |||
| SMC-300-0016E | EtherCAT master controller capable of controlling 16 axes | |||
| SMC-300-0032E | EtherCAT master controller capable of controlling 32 axes | |||

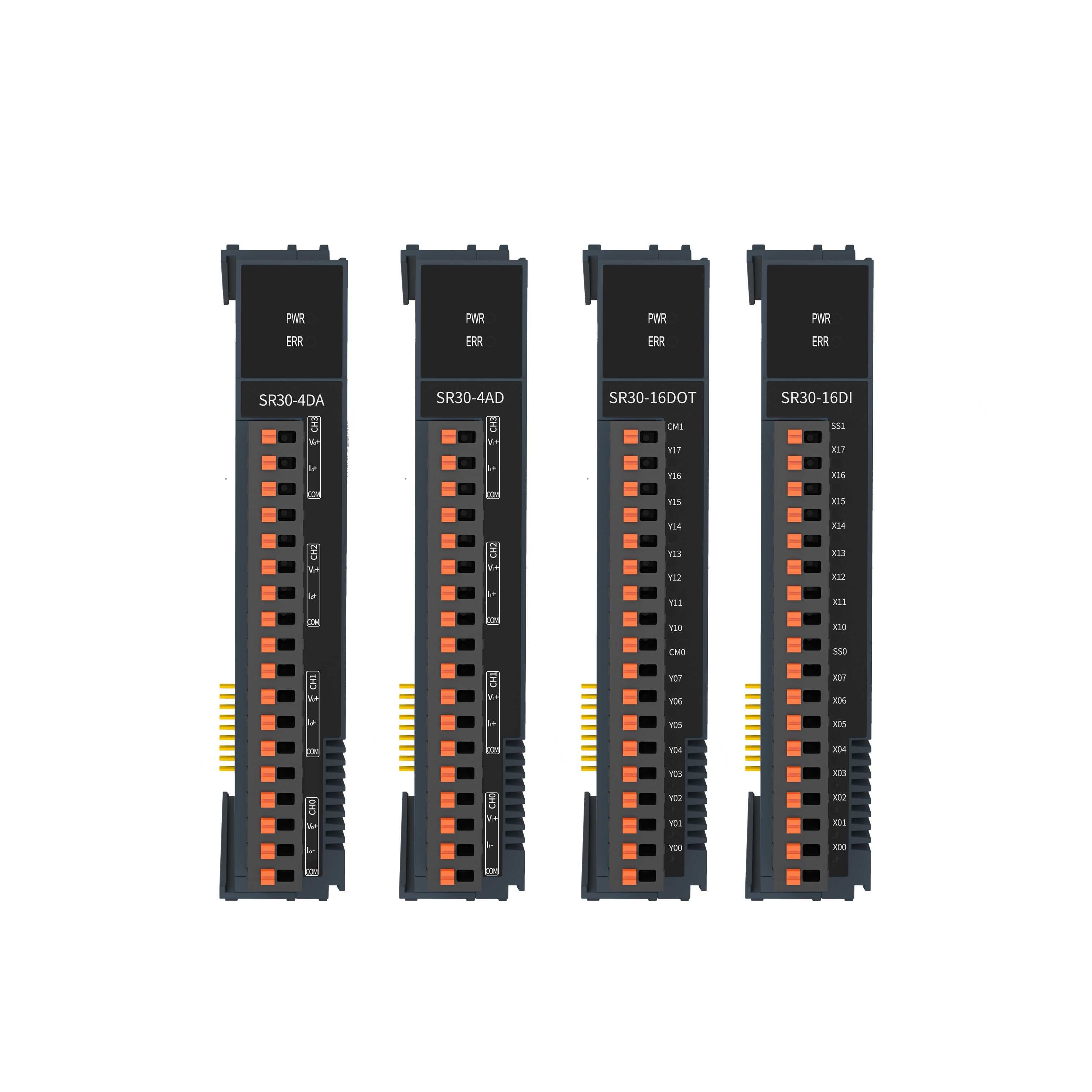

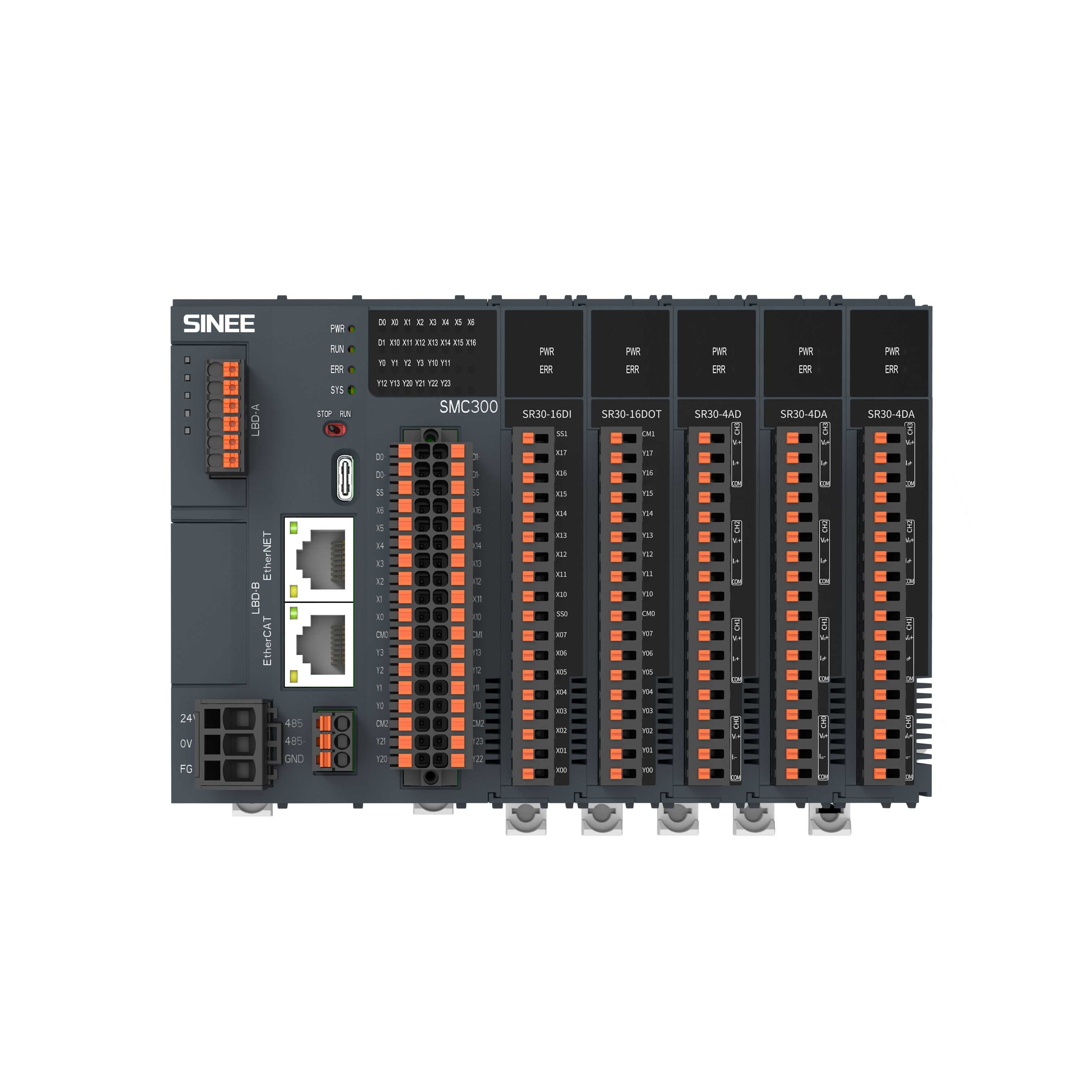

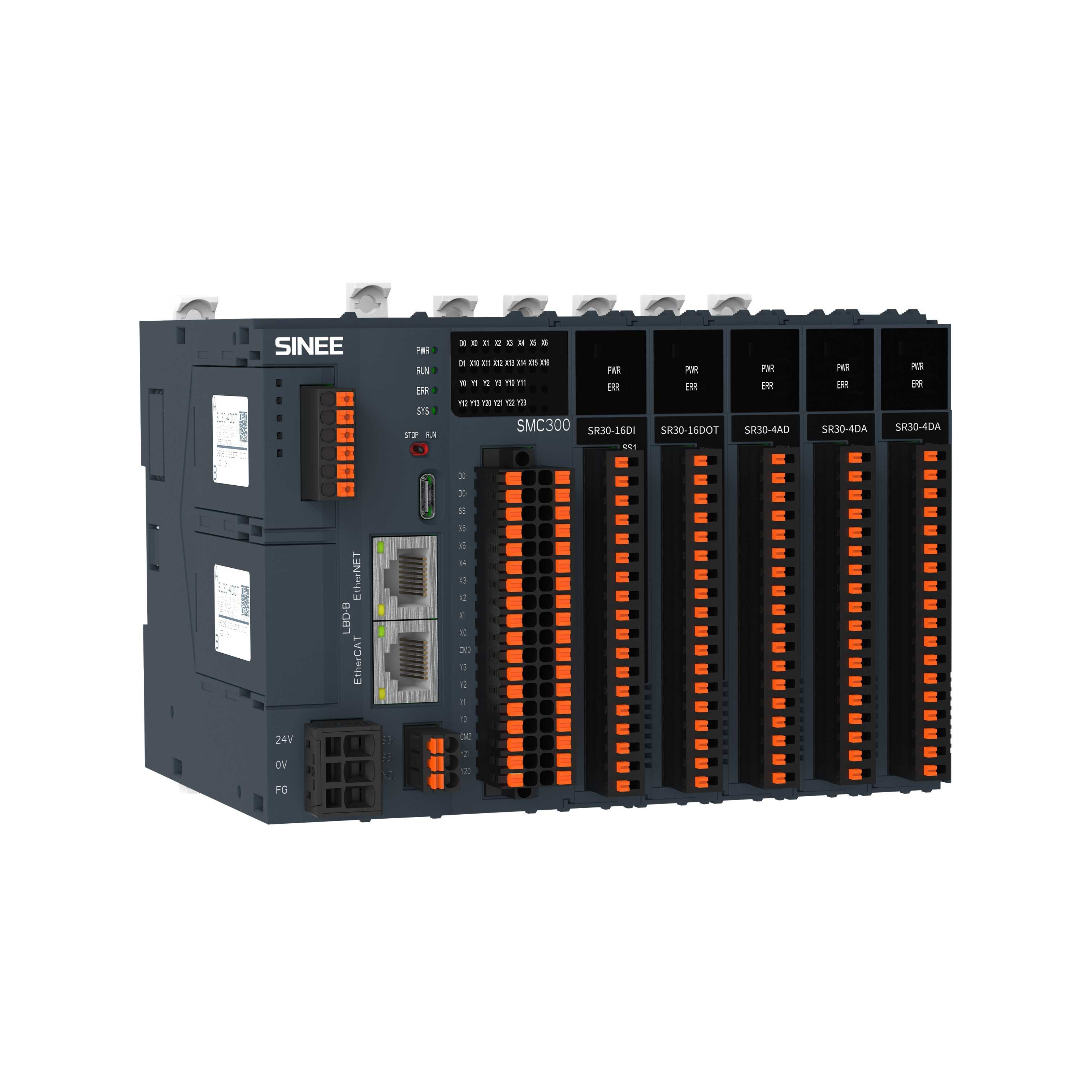

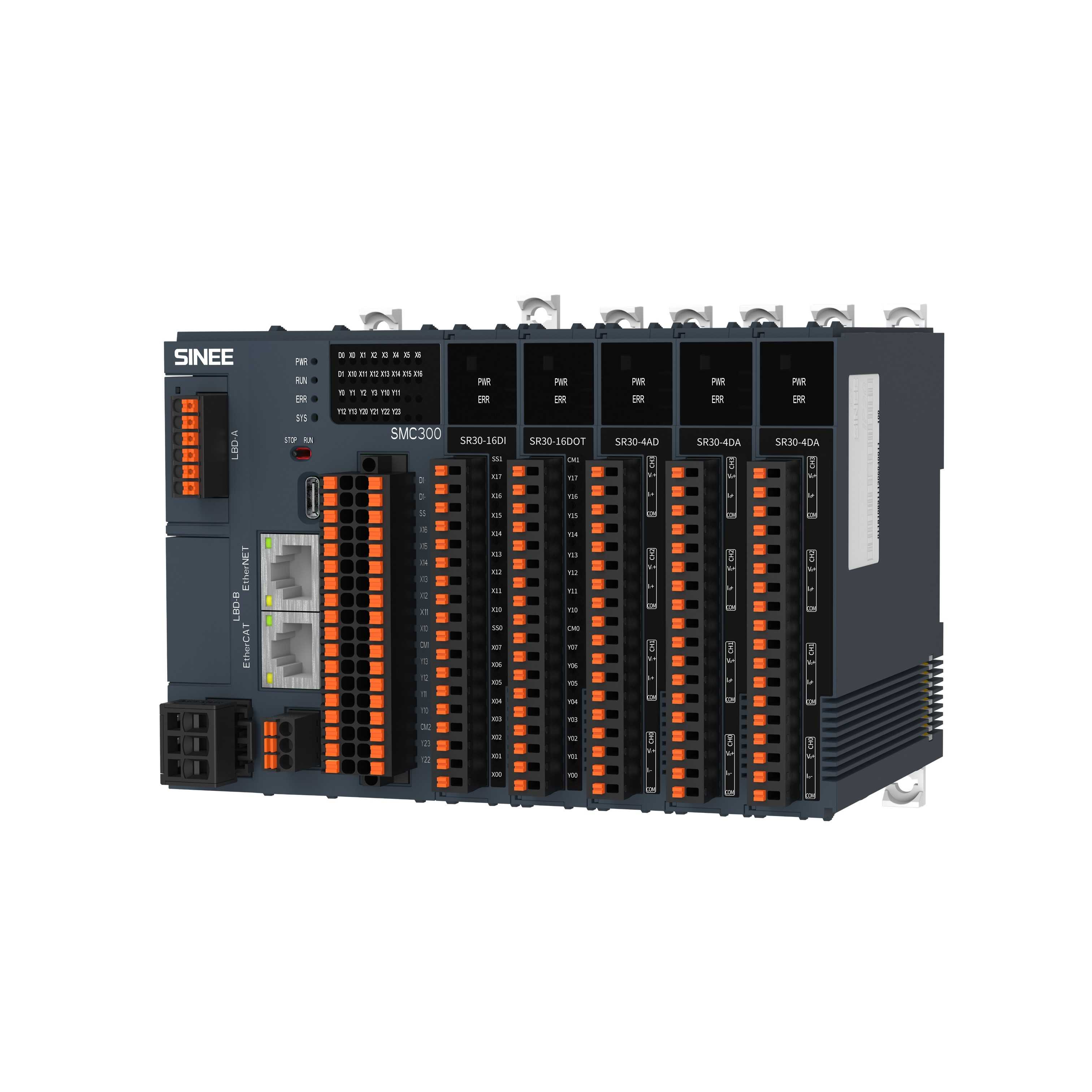

| 2 | Right expansion module | 1 | SR30-16DI | Right 16-channel digital input expansion module |
| SR30-16DOT | Right 16-channel digital output expansion module (NPN type) | |||
| SR30-4AD | 4-way 14bit AD input expansion module on the right | |||
| SR30-4DA | 4-way 12bit DA output expansion module on the right | |||
| 3 | EtherCAT communication repeater | 1 | SN30-ECAT | EtherCAT communication repeater |
| 4 | Left expansion card | 1 | SL30-4DOT | 4-way digital output expansion card on the left (NPN type) |
| SL30-4DI | 4-way digital input expansion card on the left | |||
| SL30-C5-RTC | Left real-time clock + RS485/RS232 expansion card | |||
| SL30-C25 | Left RS232/RS485 expansion card | |||
| SL30-CCAN | Left CAN+RS485 expansion card | |||
| SL30-TF | Left TF expansion card | |||
| SL30-2A1D | 2-way 12bit analog input + 1-way 12bit analog output expansion card on the left |
