• 1-ph/3-ph 220V ~ 240V 50W ~ 1kW
• SVPWM/Vector Control
• Modbus RTU/Profinet/EtherCAT/CANopen Communication
• 5 keys / 5-digit LED Front panel
• Support 17-bit incremental / 23-bit absolute encoder
• 1-ph/3-ph 220V ~ 240V 50W ~ 1kW
• SVPWM/Vector Control
• Modbus RTU/Profinet/EtherCAT/CANopen Communication
• 5 keys / 5-digit LED Front panel
• Support 17-bit incremental / 23-bit absolute encoder

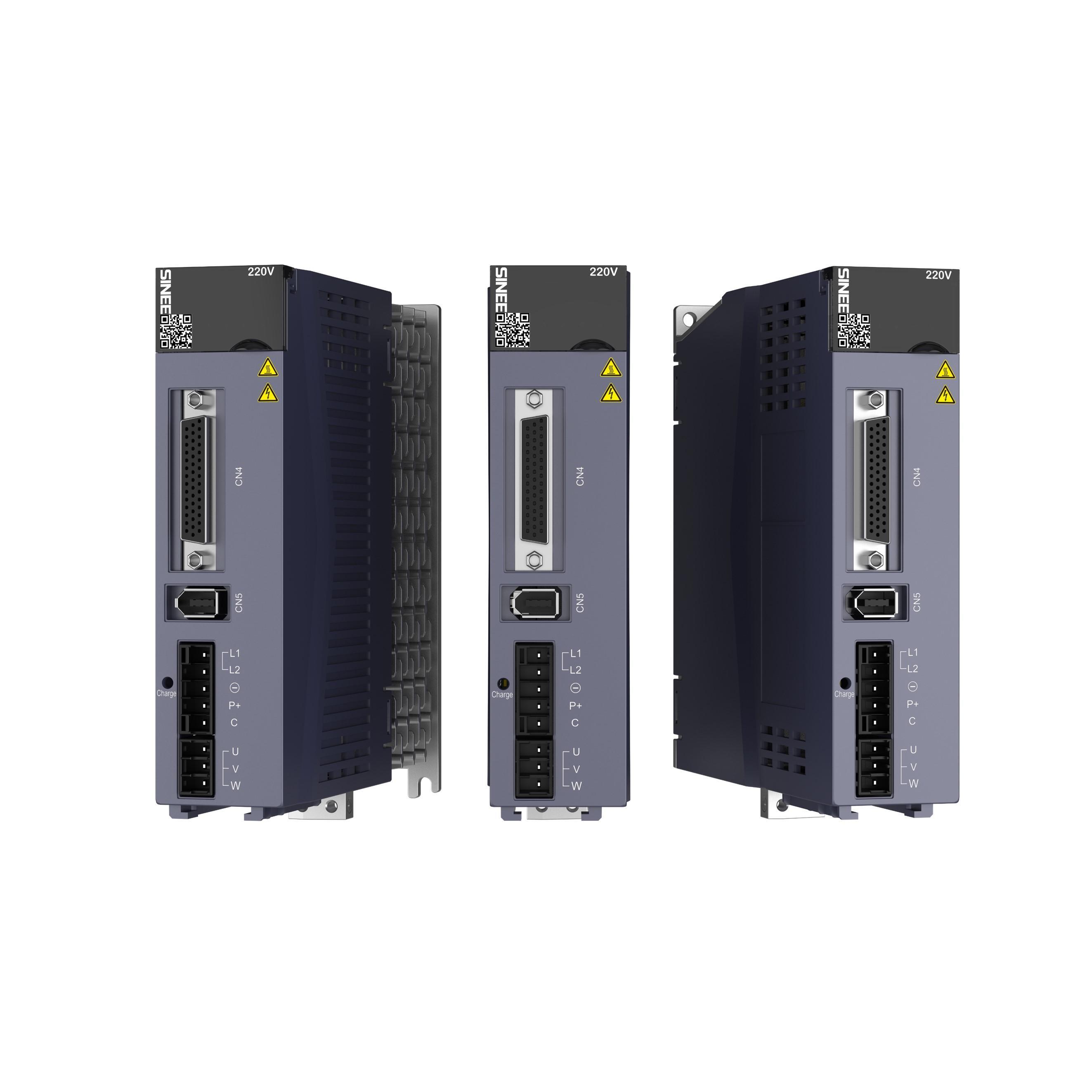

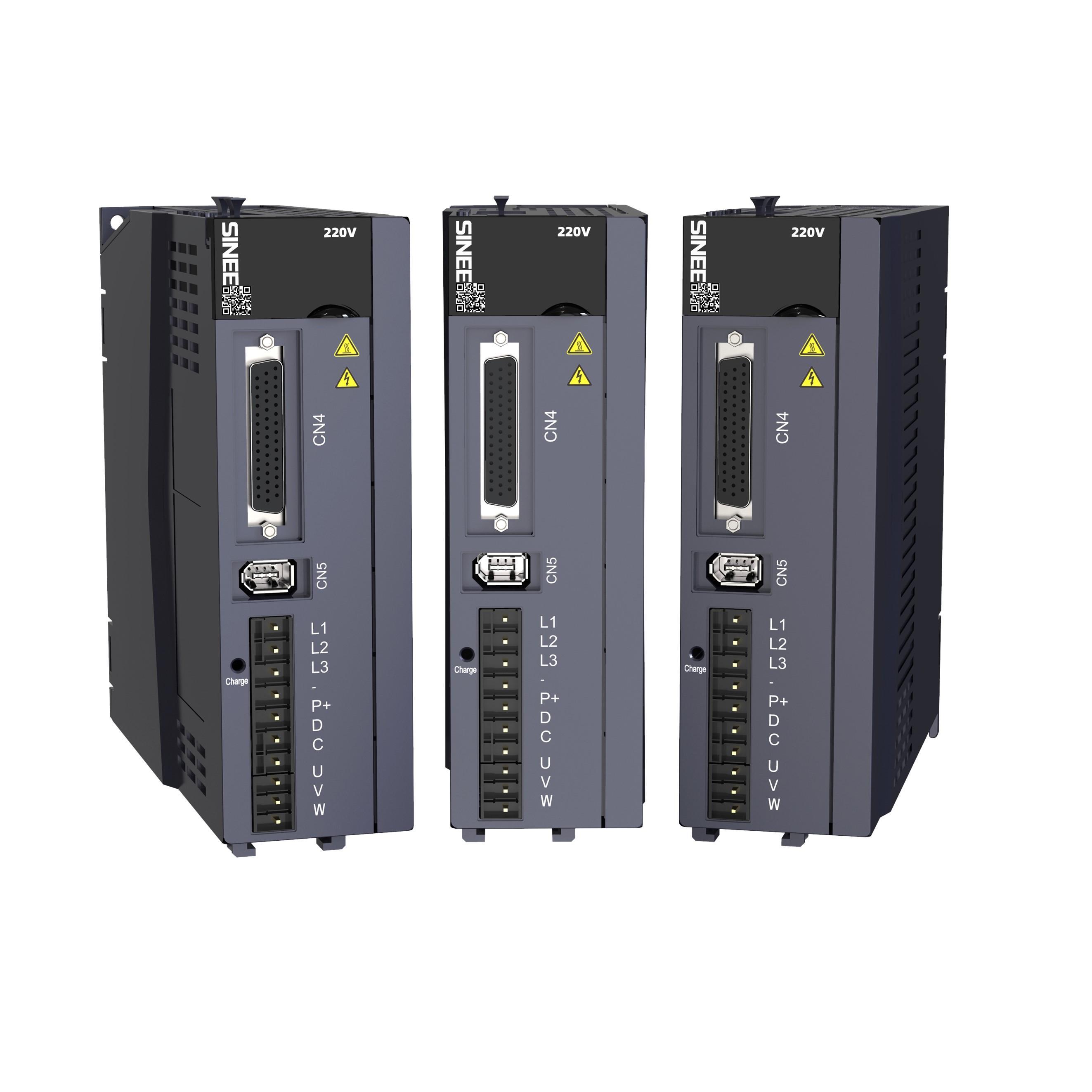

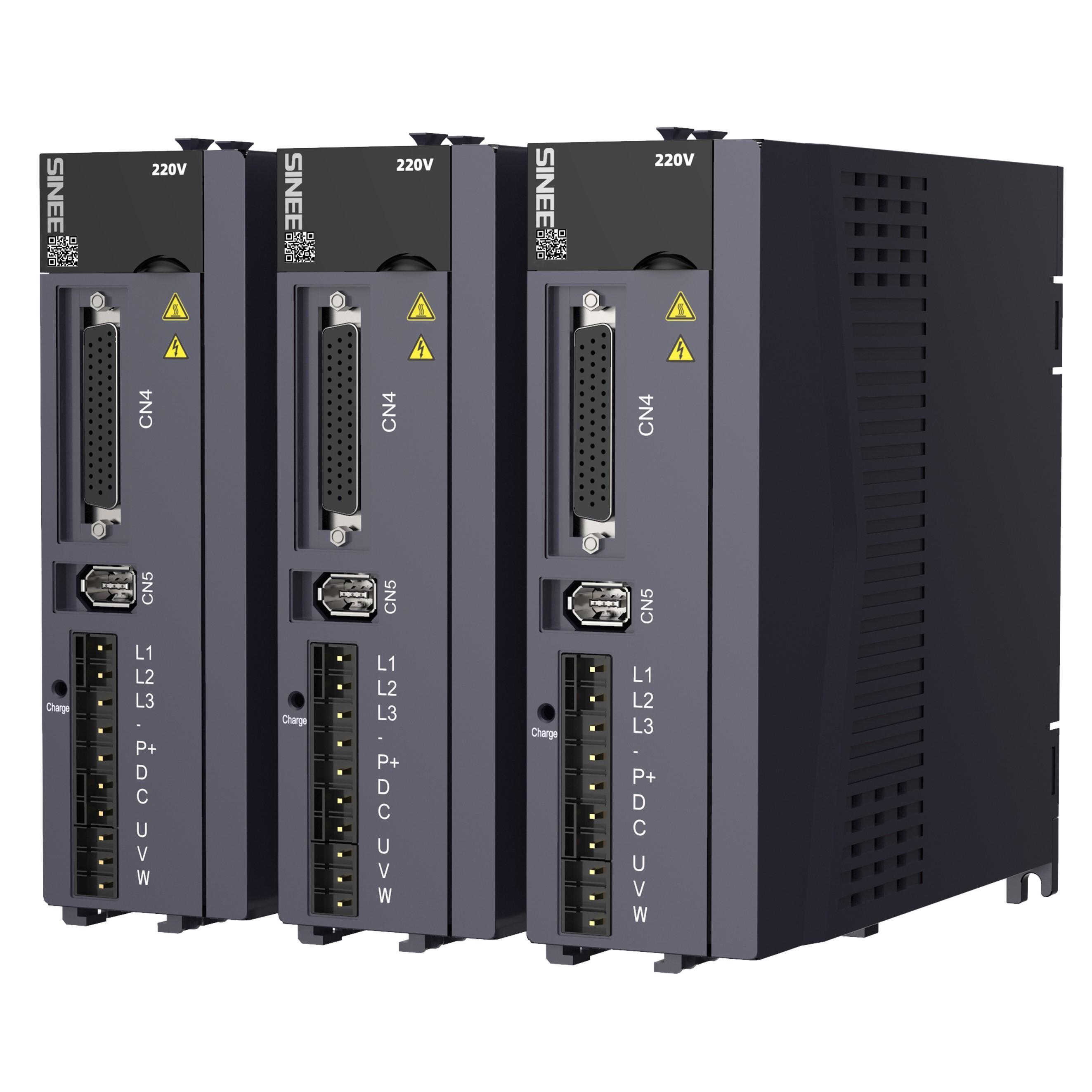

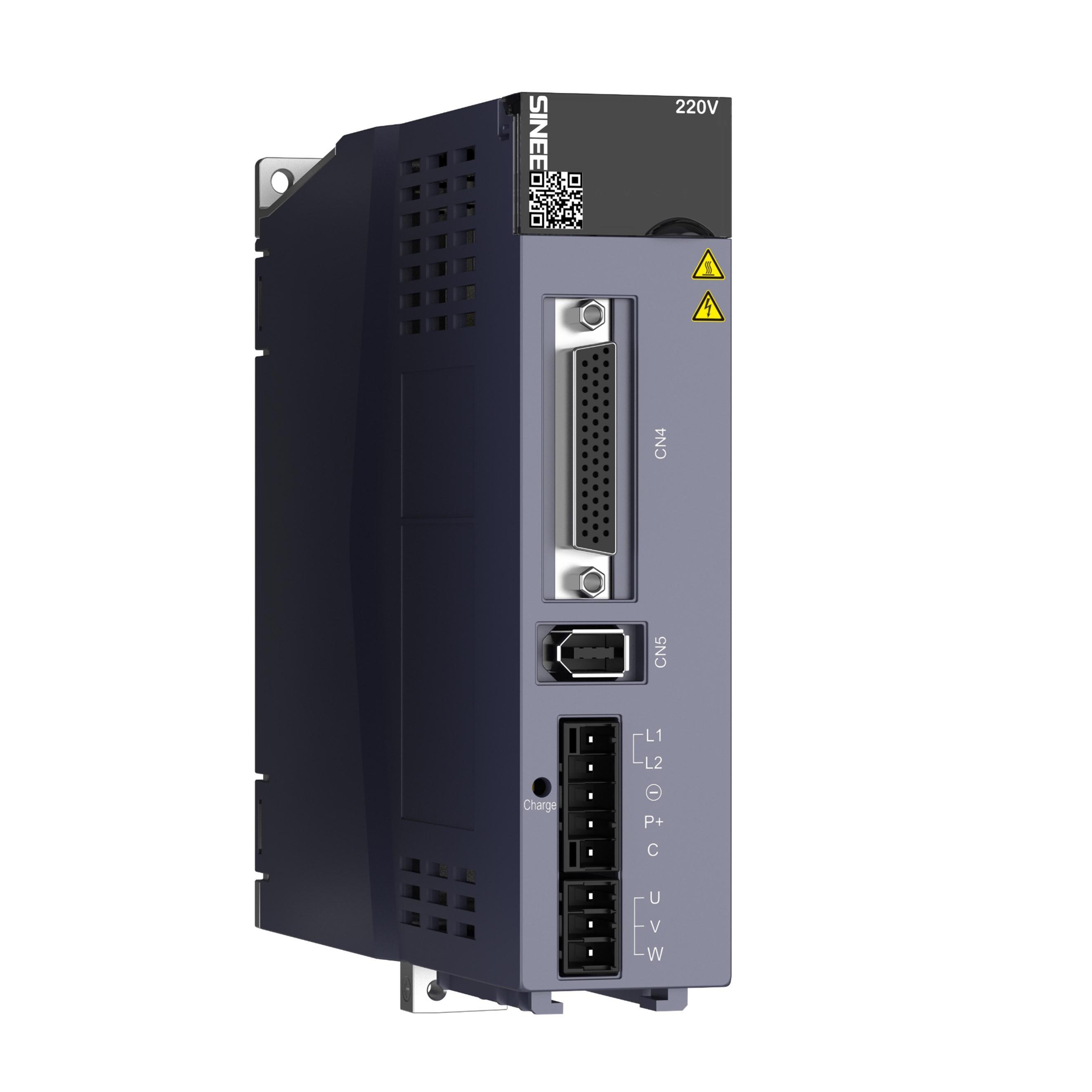

EA190 series servo driver
Single/three-phase 220V ~ 240V 50W ~ 1kW
•High-speed response
•Intelligent control
•High-precision positioning
•Stable and reliable
Rapid development of e-commerce and cold chain logistics in China brings ne w opportunities for the express
delivery industry. The large delivery volume has expedited construction of sorting centers for express
delivery of goods, while small modular sorting equipment and sys tems of high flexibility and performance-
cost ratio have become a focus of fast delivery enterprises.
“To accomplish each delivery” is the uppermost pursuit of deliver y services. Accurate sorting is obviously a
core procedure of deliver y. Sorting error will not only cause inconvenience to customers, but also impair
confidence of goods sellers and express delivery enterprises. Reliable intelligent sorting systems are helping
distribution centers of express delivery enterprises realize“ intelligent sorting, fast transfer and less
people-dependent operation” of parcels.
| Operating conditions | Temperature | Working temperature 0~40° , storage temperature -20° ~85° | ||||
| Humidity | Working/storage: ≤ 90% RH (without dew condensation) | |||||
| Altitude | ≤ 1,000 m | |||||
| Vibration | ≤ 4.9 m/s2, 10~60 Hz (no operation at the point of resonance is permitted) | |||||
| Cooling method | Fan cooling | |||||
| Control method | SVPWM, vector control | |||||
| Six control modes | Speed control, position control, torque control, speed / position control, torque / speed control, position /torque control | |||||
| Front panel | 5 keys, 5-digit LED | |||||
| Regenerative brake | Built-in brake unit and resistor; an external braking resistor can be connected | |||||
| Feedback mode | Support 17-bit incremental / 23-bit absolute encoder | |||||
| Digital input / output | Input | Servo start, alarm resetting, position pulse deviation counter clearing, speed command direction selection, position / speed multi-segment switching, internal command trigger, control mode switching, pulse disable, forward drive disable, reverse drive disable, forward jog, backward jog | ||||
| Output | Servo ready, brake output, motor rotation output, zero-speed signal, speed approach, speed reached, position approach, torque limit, rotating speed limit, warning output, alarm output. | |||||
| Protective Function | Hardware | Over-voltage, under-voltage, over-speed, overheat, overload, over-speed, encoder alarm, and so on. | ||||
| Software | Excessively large position error, EEPROM fault, and so on. | |||||
| Alarm data tracking function | Record 4 groups of historical alarms and relevant data | |||||
| Communication function | Modbus RTU | |||||
| Encoder signal output resolu- tion | Signal type | A, B, Z differential outputs, Z signal open-collector output; Z signal width can be set. | ||||
| Resolution | Any frequency division can be programmed and output before or after frequency quadruplication | |||||
| Position control mode | Maximum input pulse frequency | Differential input mode: 500 Kpps Open-collector input mode: 200 Kpps | ||||
| Pulse command mode | Pulse + symbol, A and B-phase orthogonal pulse, CW/CCW | |||||
| Command con- trol mode | External pulse command, multi-segment position command | |||||
| Command smoothing mode | Low-pass filtering, FIR filter, trapezoid-shaped smoothing of multi-segment position command | |||||
| Electronic gear ratio | Electronic gear ratio: N/M multiples (0.001 < N/M < 64000 = N: 1~230, M: 1 ~ 230 | |||||
| Position accuracy | ±1 pulse command | |||||
| Speed control mode | Command control mode | digital speed command, multistage speed command, inching command | ||||
| Command smoothing mode | Low-pass filtering, smooth S curve | |||||
| Torque limit | Digital setting limit | |||||
| Speed regula- tion ratio | 1:5000 (23-bit encoder) | Minimal speed/rated rotating speed of continuous stable operation under the rated load | ||||
| Bandwidth | No less than 800 Hz (in case of a 23-bit encoder) | |||||
| Speed regula - tion ratio | Load fluctuation (0 ~100%) | Maximum 0.1% | For a 23-bit encoder, when the speed command is the rated rotating speed, (rotating speed without load rotating speed with full load) / rated rotating speed. | |||
| Power voltage change ±10% | Maximum 0.1% | |||||
| Environment temperature (0~50℃ ) | Maximum 0.1% | |||||
| Torque con- trol mode | Command con- trol mode | digital torque command | ||||
| Command smoothing mode | Low-pass filtering | |||||
| Speed limit | Digital setting limit | |||||
| Accuracy | ±3% (current repetition accuracy) | |||||
| Motor specification / model | Adaptable driver model | Encoder cable | Motor cable | ||||||
| SES04-005-30-2HAY □ | EA190□-0R9-1B | A19-LS-A000-m (without battery) A19-LA-A000-m (with battery) | A18-LM-A007-m (motor power cable) A18-LZ-A005-m (brake cable for motor with a brake) | ||||||
| SES04-0R1-30-2HAY □ | EA190□-1R6-1B | ||||||||
| SES06-0R2-30-2HBY □ | |||||||||
| SES06-0R4-30-2HBY □ | EA190□-2R5-1B | ||||||||
| SES08-0R7-30-2HBY □ | EA190□-4R8-2B | ||||||||
| SES08-1R0-30-2HBY □ | EA190□-6R2-2B | ||||||||
| SER13-1R0-10-2HBY □ | A19-LS-H100-m (without battery) A19-LA-H100-m (with battery) | Without brake: A18-LM-H115-m With brake: A18-LB-H115-m | |||||||
| SER13-1R0-20-2HBY □ | |||||||||
| SER13-1R0-30-2HBY □ | |||||||||
| ① Product series | ② Motor flange size | ③ Rated output power |
| SER: Standard servo motor SES: High performance servo motor SEM: High-power servo motor | 04: 40mm 06: 60mm 08: 80mm 09: 86mm 11: 110mm 13:130mm 18: 180mm 20: 200mm 26: 266mm | 005: 50W 0R1: 100W 0R2: 200W 0R4: 400W 0R7: 750W 1R0: 1000W 1R5: 1500W 2R0: 2000W 3R0: 3000W 4R4: 4400W 5R5: 5500W 7R5: 7500W 011: 11000W |
| ④ Rated motor speed | ||
| 10: 1000rpm 15: 1500rpm 20: 2000rpm 25: 2500rpm 30: 3000rpm | ||
| ⑦ Inertia type | ||
| ⑤ Voltage level | A: Low inertia B: Medium inertia C: High inertia | |
| 2: 220V 3: 380V | ||
| ⑨ Optional | ||
| ⑥ Encoder type | ⑧ Shaft end | None:No option 1: With brake (DC24V) 2: With oil seal 3: With a brake and oil seal |
| A: 2500ppr incremental B: 17-bit incremental H: 17-bit magnetic incremental F: 23-bit absolute G*1: 2500ppr wire-saving encoder | X: Shaft without keyway*1 Y: Shaft with U-shaped keyway and screw hole*2 Z: Shaft with double round keyways and screw hole | |
| ⑩ Special specifications |
