Multiple Bus:Equipped with EtherNET and EtherCAT as standard, supporting multiple communication protocols
Easy Programming:Support ST language programming function, easy to write complex algorithms and logical functions
Superior Performance:Supports up to 4 pulse axes or 8 bus axes, bus synchronization cycle 1ms
Compact Structure:Blade-type expansion, quick and easy assembly, saving space
Flexible Expansion:Supports a variety of expansion modules + optional accessories to meet various application requirements
Technical Support:Provide comprehensive technical support and application services

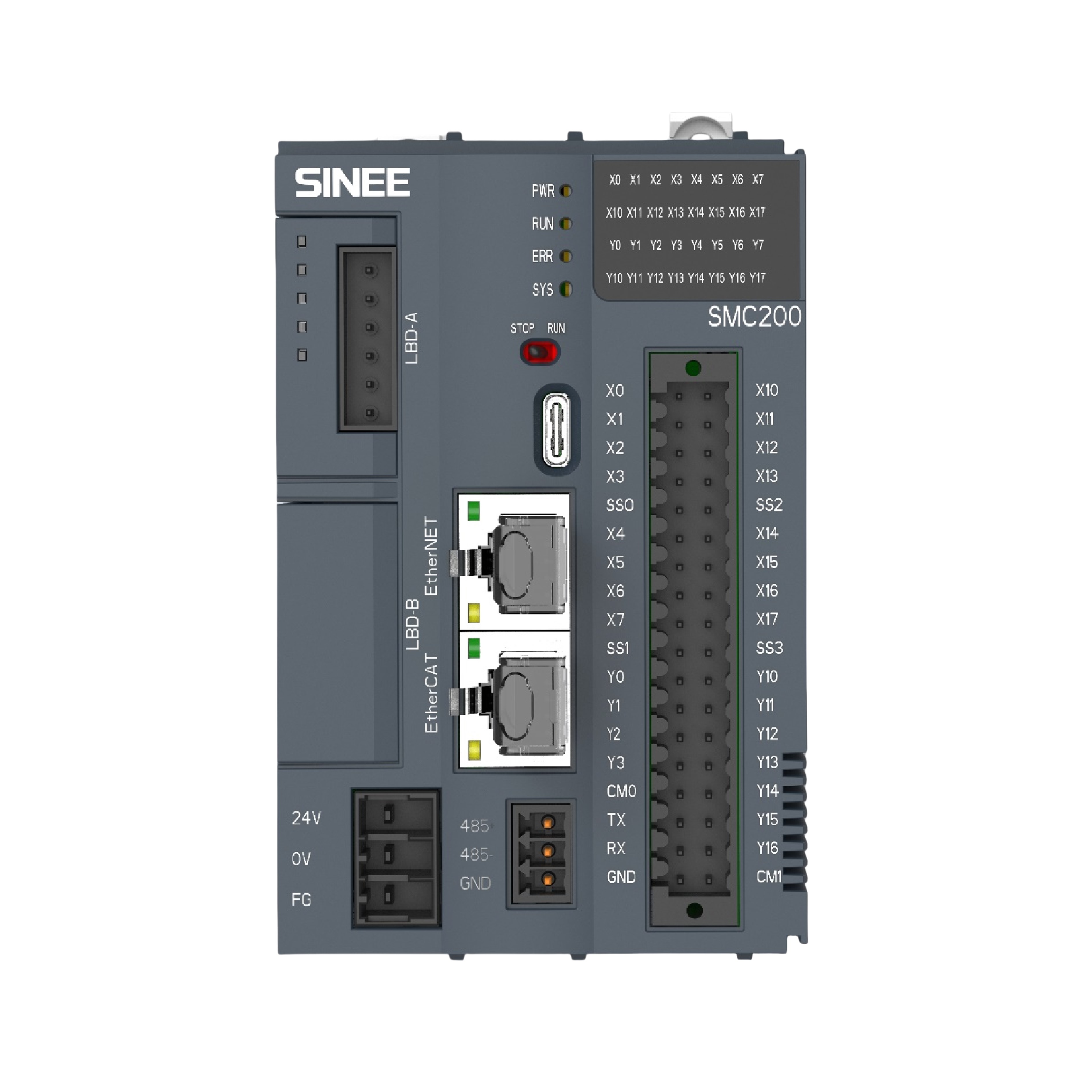

| Serial | Type | Interface ID | Definition | Illustrate |
| 1 | Silkscreen | / | Company logo screen printing | / |
| 2 | Indicator Lights | PWR | Power Status | |
| RUN | Running, Stopping Status | |||
| ERR | Network Error | E bus, C bus error indication | ||
| SYS | System Status | Flashing red: System error | ||
| 3 | LED Indication | / | 16 input points, 11 output points | |
| 4 | Dip switch | RUN、STOP | Control system running and stopping | |
| 5 | I/O Terminals | / | 16 input points, 11 output points | For detailed definition, please refer to 1.6 Terminal Arrangement |
| 6 | Right Extension | / | Right expansion module interface | For detailed instructions, please refer to the |
| 7 | RS485 interface | 485+ | 485Communications+ | |
| 485- | 485Communications- | |||
| GND | 485Communication grounding | |||
| 8 | Power interface | +24V | DC 24V input | |
| 0V | ||||
| PG | PG | |||
| 9 | Ethernet port 2 | EtherCAT | EtherCAT communication | |
| 10 | Ethernet port 1 | EtherNET | Ethernet communication | Subsequent development |
| 11 | USB | Type-C | Firmware Upgrade | |
| 12 | Left extension accessory | LBD-A | Left expansion card | For detailed instructions, please refer to the |
| LBD-B |
| Model | SMC200-004E | SMC200-006E | SMC200-008E | |||
| Programming capacity | Program data capacity | 256KB | ||||
| Power-off retention capacity | 128KB | |||||
| Programming Language | LD, IL | |||||
| Axis Capacity | Number of pulse axes | 4 | ||||
| Total number of axes | 4 | 6 | 8 | |||
| Right Extension | Max right extension amount | 8 | ||||
| Optional Accessories | Max number of optional cards | 2 | ||||
| Host IO point | Input | Points | 12 points normal input + 4 points high speed input | |||
| Function | 4-way 200K high-speed pulse input (single phase, AB phase, CW/CCW) | |||||
| Output | Points | 7 points normal input + 4 points high speed input | ||||
| Function | 4-way 200K high-speed pulse output (pulse + direction) | |||||
| USB | Number of interfaces | 1-way USB2.0 TYPE-C | ||||
| Support functions | Firmware upgrade, monitoring, software oscilloscope, etc. | |||||
| Power Supply | DC24V | |||||
| Serial | RS485 | Number of interfaces | Max 3 channels: 1 channel built into the host, 2 more channels can be added by installing optional accessories | |||
| Support Protocol | HMI Protocol | |||||
| Max number of slaves | 32 | |||||
| Baud rate bps | 9600、38400、115200 | |||||
| RS232 | Number of interfaces | Max 2 channels: 1 channel built into the host, 2 channels can be expanded by installing optional accessories | ||||
| Support Protocol | HMI Protocol | |||||
| Max number of slaves | 1 | |||||
| Baud rate bps | 9600、38400、115200 | |||||
| EtherNet | Number of interfaces | 1-Way | ||||
| Function | Communication, program upload and download, etc. | |||||
| Data transfer speed | 10M/100Mbps | |||||
| Total number of TCP connections | 8 | |||||
| Modbus TCP | Max number of clients (masters): 7; Max number of servers (slaves): 8 | |||||
| Socket | Maximum number of connections: 8 (TCP) | |||||
| Cables | Standard Industrial Ethernet Communication Cable | |||||
| EtherCAT | Topology | Linear | ||||
| Transmission medium | Standard EtherCat communication cable | |||||
| Max transmission distance between nodes | 100m | |||||
| Max number of slaves | 4 | 6 | 8 | |||
| Communication cycle | Minimum 1ms | |||||
| Support Protocol | EtherCAT Master | |||||
| Serial number | Model | Description |
| 1 | SMC200-008E | EtherCAT master controller capable of controlling 8 axes |
| 2 | SMC200-006E | EtherCAT master controller capable of controlling 6 axes |
| 3 | SMC200-004E | EtherCAT master controller capable of controlling 4 axes |
