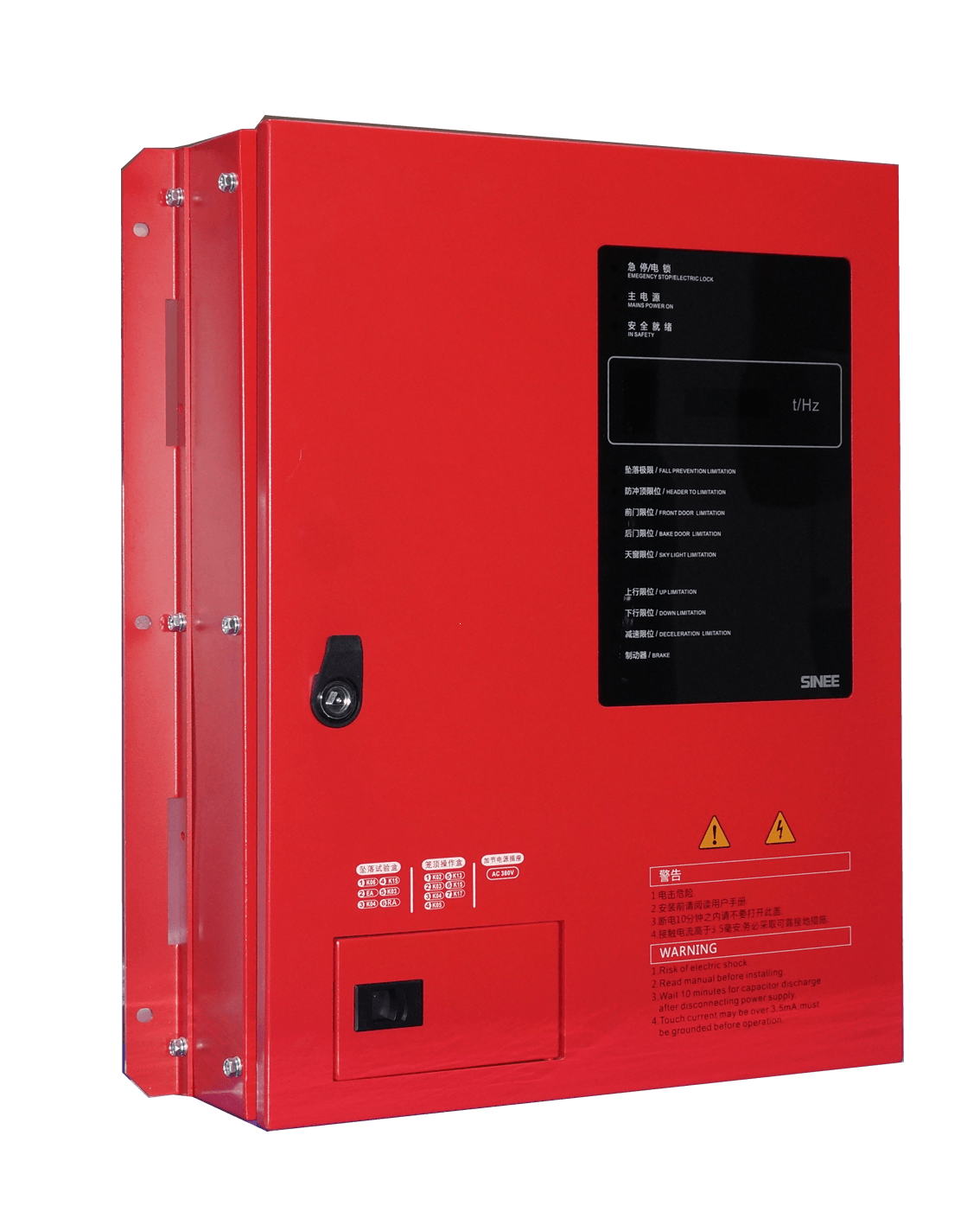

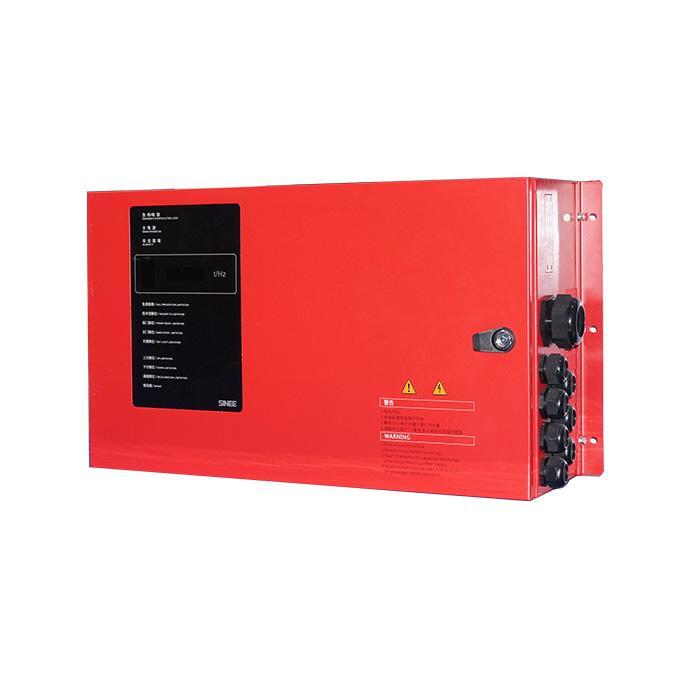

EM630C Series Integrated Controller
• Five functions in one: variable frequency drive; brake unit; low voltage control logic; weight limiter; brake power supply;
•Maximum space saving: miniaturized volume; cage installation/through wall installation; pluggable terminals;
•The product is more reliable and safe: control logic hardware interlock; main circuit copper bar design; built-in DC reactor; research and development according to IPD process;
• More comfortable ride: brake control logic; zero-speed torque hold function.
| Item | Specification | |
| Power supply | Rated supply voltage | Three-phase 380V±15%，50～60Hz±5%，Voltage imbalance rate<3% |
| Output | Output voltage | The maximum output voltage is the same as the input supply voltage |
| Output current rating | 100% Rated current continuous output | |
| Maximum overload current | 150% rated current 1min，180% rated current 10s | |
| Basic Control Functions | Drive mode | Dedicated controls for hoisting |
| Input | Frequency (speed) input | |
| Operation mode | Keyboard, control terminal (two-wire control, three-wire control), RS485 | |
| Frequency control range | 0.00～600.00Hz | |
| Input frequency resolution | Digital input：0.01Hz Analog input: 0.1% of maximum frequency | |
| Speed range | 0.111111111 | |
| Speed Control Accuracy | ±0.5% Rated synchronous speed | |
| Acceleration and deceleration time | 0.01s～600.00s | |
| Voltage/Frequency Characteristics | The rated output voltage is adjustable from 20% to 100%, and the base frequency is adjustable from 20Hz to 600Hz | |
| Torque boost | Automatic torque boost, fixed torque boost curve | |
| Starting torque | 150%/0.5Hz | |
| Output voltage self-adjusting | When the AVR function is valid, the input voltage changes and the output voltage remains basically unchanged | |
| Automatic current limit | Automatically limit the output current to avoid frequent over-current tripping | |
| (Please limit this function for lifting and hoisting parts) | ||
| DC braking | Braking frequency：0.1～60Hz，Braking time：0～30S | |
| Braking current：0～150% Rated current | ||
| Signal input source | Communication, analog voltage, analog current, multi-speed, simple PLC and its combination | |
| Input&Output Function | Reference power | 10V/20Ma |
| Terminal Control Power | 24V/150Ma | |
| Digital input terminal | 7 digital programmable input terminals | |
| Analog input terminal | 4-way analog input: 2-way voltage source 0-10V input, 2-way current source 0-20mA | |
| Input | ||
| Digital output terminal | 2-way open collector multi-function output, 2-way relay multi-function output. Collector | |
| Output maximum output current 50mA; relay contact capacity 250VAC/3A or 30VDC/1A, EA-EC and RA-RC normally open, EB-EC and RB-RC normally closed | ||
| Analog output terminal | 2 programmable analog output terminals, can output 0~10V or 0~20mA | |
| Keyboard display | LED display | LED digital tube displays the relevant information of the controller |
| Parameter copy | The function parameter information of the controller can be uploaded and downloaded to realize fast parameter copying | |
| Protection | Protection | Short circuit, overcurrent, overload, overvoltage, undervoltage, phase loss, overheating, overload protection, etc. |
| Use Conditions | Installation site | Indoor, below 1 km above sea level, free from dust, corrosive gas and direct sunlight |
| Applicable environment | -10℃～+40℃,20%～90%RH(no condensation) | |
| Vibration | <0.5g | |
| Storage environment | -25℃～+65℃ | |
| Installation method | Wall-mounted, floor electric control cabinet | |
| Protection Level | IP20 | |
| Cooling method | Forced air cooling | |
| Model | Applicable motor power（kW） | Rated output current（A） |
| EM630C1-015-3B-0(-P) | 15 | 32 |
| EM630C1-037-3B-0A(-P) | 37 | 75 |
| EM630C1-037-3B-0B(-P) | ||
| EM630C2-037-3B-0(-P) | ||
| EM630C2-037-3B(-P)-DH | ||
| EM630C2-045-3B-0(-P) | 45 | 90 |
| EM630C2-055-3B-0(-P) | 55 | 115 |
| EM630C2-075-3B-0(-P) | 75 | 150 |
| Model | W | W1 | W2 | H | H1 | D | D1 | D2 | d | Shape |
| EM630C1-015-3B-0(-P) | 450 | 481 | 504 | 462 | 360 | 225 | / | / | 10.5 | a |
| EM630C1-037-3B-0A(-P) | 700 | 740 | 768 | 395 | 150 | 220 | / | / | 9 | a |
| EM630C1-037-3B-0B(-P) | ||||||||||
| EM630C2-037-3B-0(-P) | 450 | 500 | 524 | 582 | 240 | 222 | 181 | 101 | 8.5 | b |
| EM630C2-037-3B(-P)-DH | 580 | 612 | 656 | 585.6 | 200 | 222 | / | 101 | 12 | b |
| EM630C2-045-3B-0(-P) | 600 | 656 | 686 | 720 | 260 | 255 | 208.5 | 105 | 11.5 | b |
| EM630C2-055-3B-0(-P) | ||||||||||
| EM630C2-075-3B-0(-P) |
