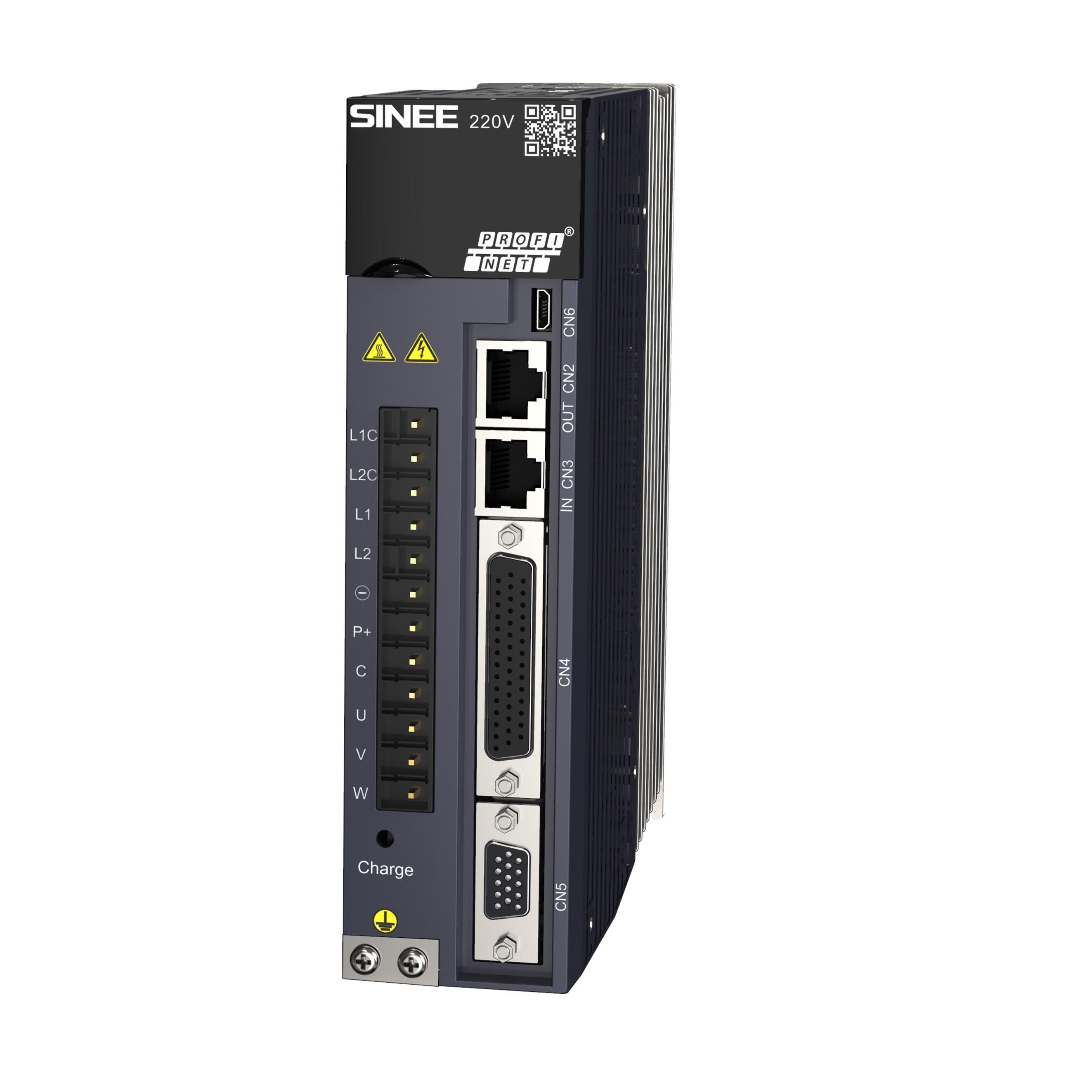

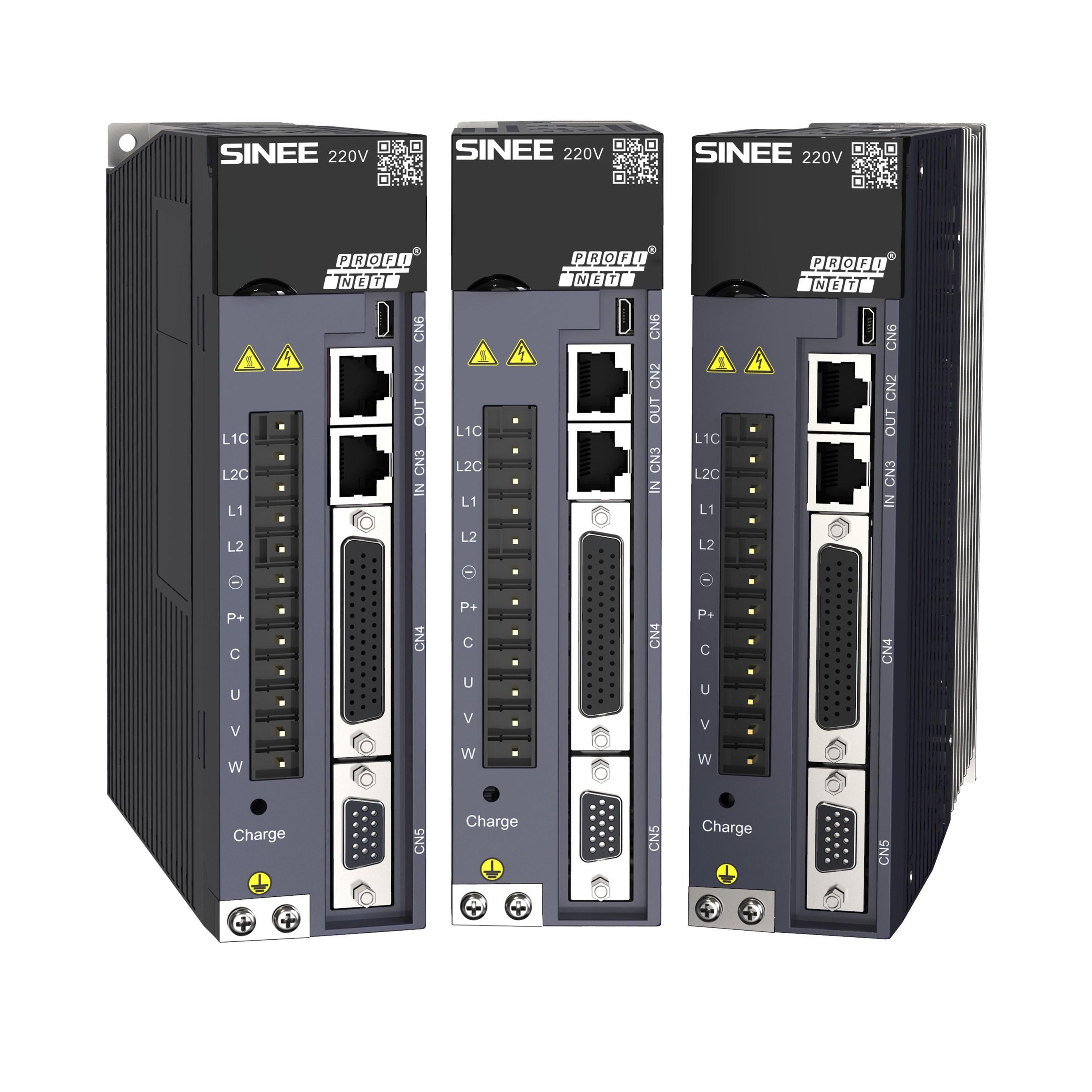

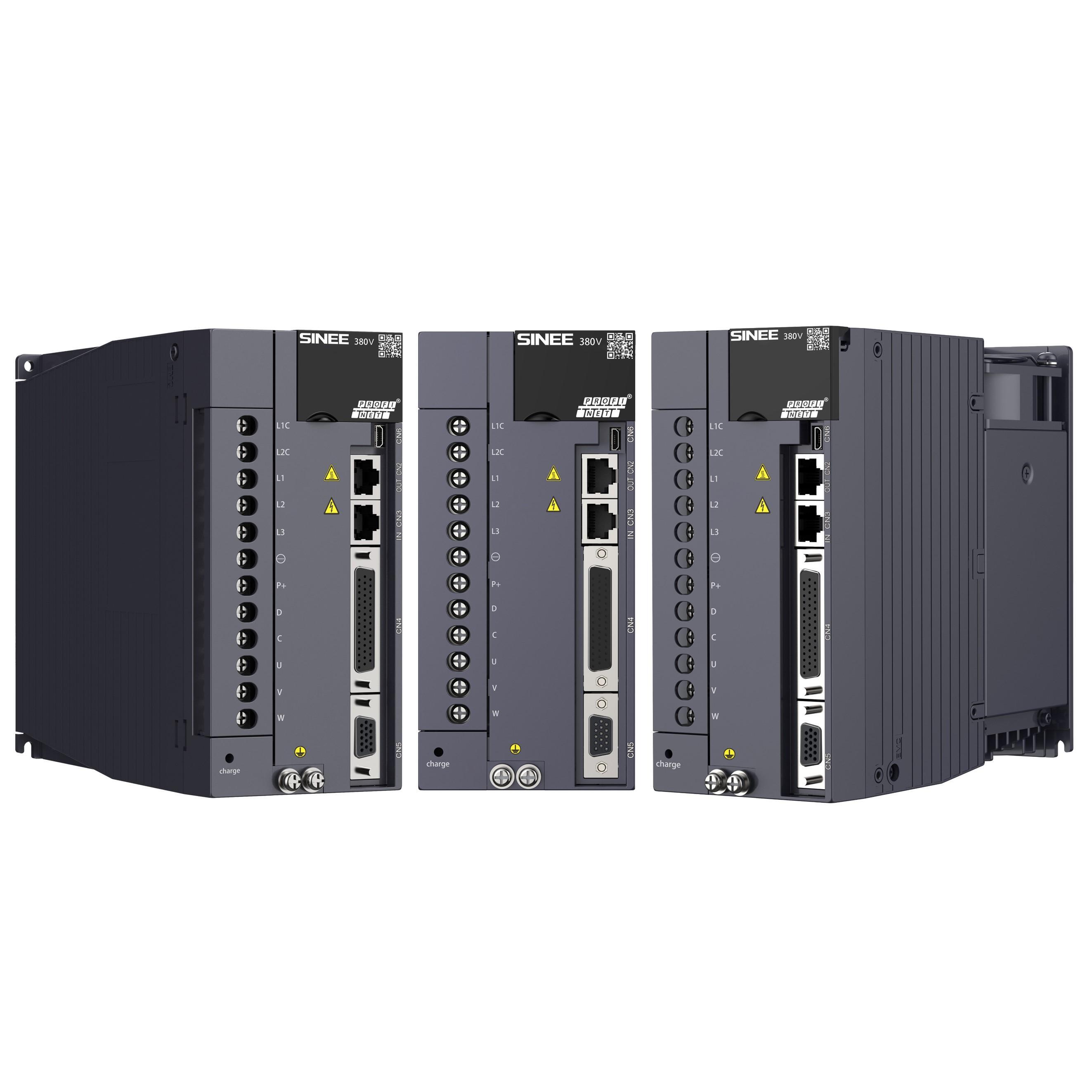

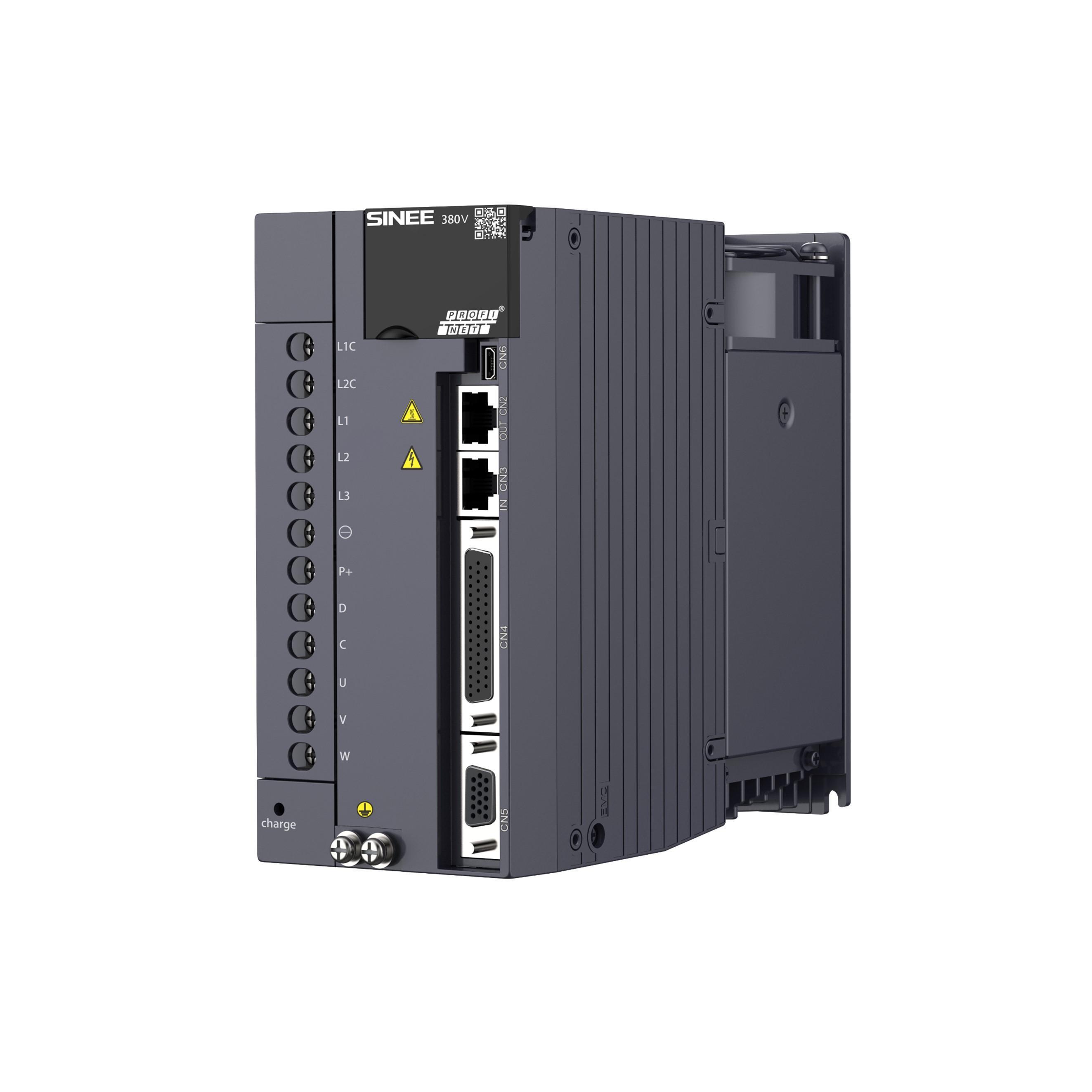

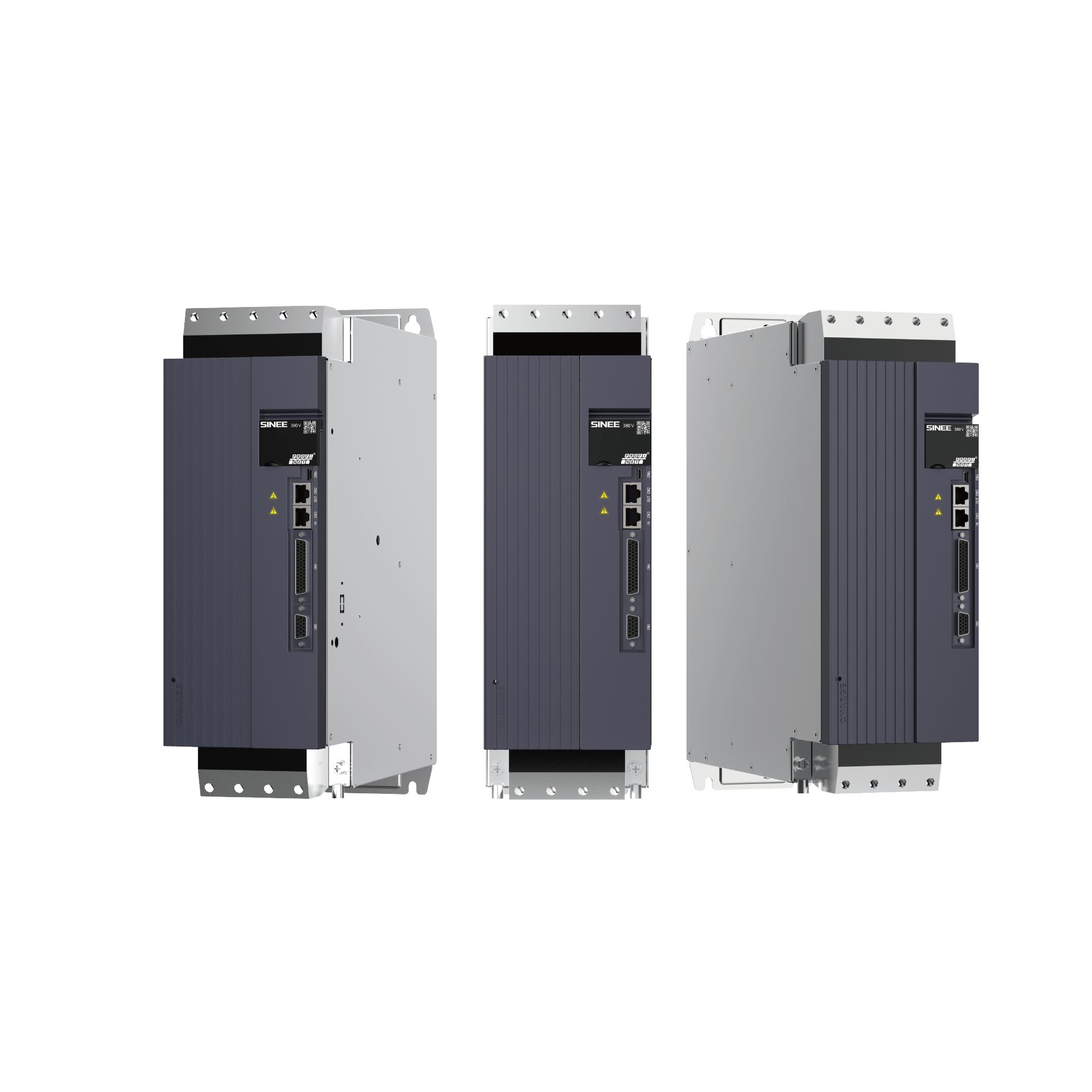

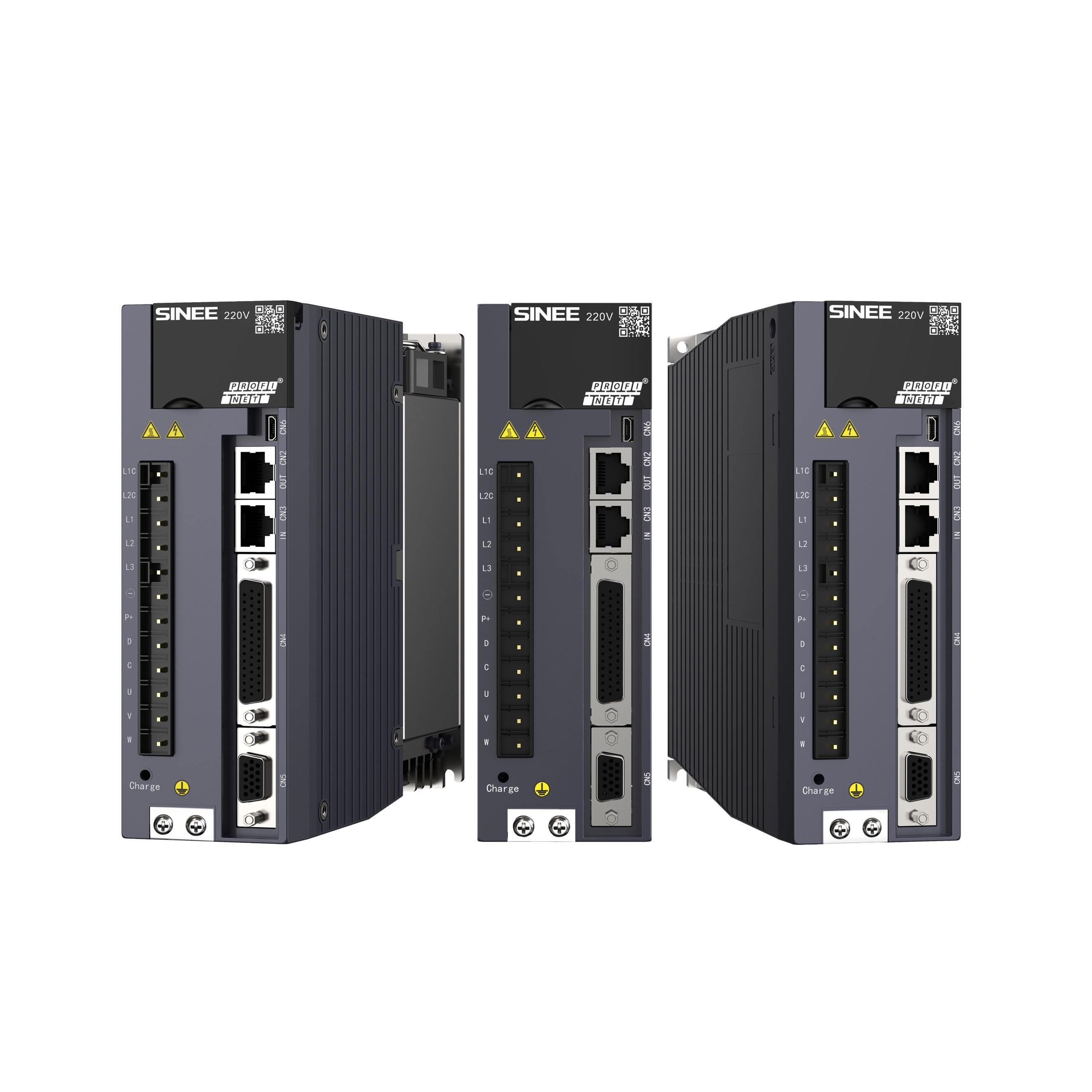

EA180P-PROFINET Bus
PROFINET Bus Type Servo Drives

EA180P Features.jpg

Features
Slide to the left to view >

EA180P PROFINET Servo Drives


Single-phase 220V~240V 0.1~1kW

Three-phase 220V~240V 0.75~1.5kW

Three-phase 340V~460V 1.5~30kW



High-speed response performance

•Up to 1.0KHz speed frequency response.

•Shortened positioning time.

•High-speed and high-accuracy real-time synchronous

communication on basis of parallelized system design.


High-accuracy positioning

•Encoder of 17 bit incremental and 23 bit absolute value,

with the powerful control performance, can make the

positioning accuracy less than 5 encoder pulses.


Abandant product series

•Analog & pulse standard type and network type with

EtherCATor CANopen or RS485 protocol supported;

•2500 ppr or serial type with17 bit incremental or 23 bit absolute values encoder available


Small Size

•Size similar to Panasonic A6 series drive, matched with SINEE SES servo motor, can help to minimize the system volume.


Intelligent controls

•Intelligentized resonance suppression

The system has four (4) high-frequency resonance suppression

notch filters, two (2) of them are the FFT-based ones; the others

are manual ones.

Synchronously the vibration suppression filters are provided

to minimize the vibration of long arm machine.


•Control gain switchover functions

The control loop structure on the basis of PDFF may reduce

overshooting efficiently.

The parameter self-adjustment on the basis of inertia

may enhance the site adaptability.


High reliability

•Complete protection function and EMC design

Protection function design on the basis of overall reliability of motor and driver;

EMC design on the basis of graded optimization and system adaptability.


•High-performance motor material and technology ensure the system to run reliably

Containing dysprosium-neodymium-ferroboron magnetic steel, high-strength shaft,

Tamagawa encoder, large-size bearing, encapsulated by resin.

PROFINET Servo system

Specifications
Slide to the left to view >
ItemSpecification
Basic SpecificationControl methodIGBT PWM control sine-wave current drive
Feedback17-bit incremental/encoder, 23-bit absolute encoder
Six control modesSpeed control, position control, torque control, speed/position   control,
    torque/speed control, position/torque control
Front panel5 keys, 5-digit LED
Regenerative brakeBuilt-in   brake unit and resistor; an external braking resistor can be connected
Use conditionsEnvironment temperatureWorking temperature 0~40° , storage temperature -20° ~85°
Ambient humidityWorking/storage: ≤ 90%RH (without dew condensation)
Altitude≤ 1,000m
Anti-vibration impact   strengthVibration: ≤ 4.9m/s² (no operation at the point of resonance is   permitted),
    impact: ≤ 19.6m/s²
Protection levelIP10
Pollution level2 level
Cooling methodFan cooling
PerformanceSpeed-torque
    control mode
Speed
    fluctuation ratio
Load   fluctuation0~100 load: Maximum 0.3%Based on 23bit encoder, at rated speed
Supply voltage changeAt rated voltage ± 10%:
    Maximum 0.3%
Environment temperature0~50℃ : Maximum 0.3%
Speed regulation ratio1:5000 (17bit and 23bit
    encoder)
Minimal speed/rated rotating speed of con-
    tinuous stable operation under the rated load
Frequency bandwidth1.2kHZ (23-bit encoder)
Torque control accuracy±3% current repetition accuracy
Soft start time setting0~30s (acceleration and deceleration can be set respectively)
Position control
    mode
Feedforward
    compensation
Resolution 0~100% (set resolution 1%)
Positioning completion   width1~655,335 instruction units (set resolution to 1 instruction   unit)
Min setting time5ms (no load, from rated speed to positioning completion)
Input/output
    signal
Digital
    input port
Funtional   Location availableFault   reset, forward drive disable, reverse drive disable, forward inch, backward   inch,
    electronic gear ratio switching etc.
Digital outputFuntional   Location availableServo   ready, brake output, motor rotation output, zero-speed signal, torque   limit,
    rotating speed limit, warning output, fault output etc.
Built-in
    function
Over-travel prevention   functionStopped immediately when   P-OT and N-OT are activated.
Electronic   gear ratio1.0 ≤   B/A ≤ 64000.0
Protective   FunctionOver-voltage,   under-voltage, over-speed, overheat, overload, over-speed, over-tem-
    perature, encoder fault, braking resistor overload fault, EEPROM fault,   abnormal
    communication etc.
Alarm   data tracking functionRecord   4 groups of historical alarms and relevant data
RS232   communicationStatus   display, user parameter setting, monitoring display, alarm tracking   display,
    JOG operation and automatic adjustment operation, speed instruction signal   etc.


Model Table
Slide to the left to view >

EA180P MODEL Descriptions.jpg

ModelRated output   currentMotor PowerModelRated output   currentMotor Power
EA180P-1R6-2B1.6A100~200WEA180P-5R6-3B5.6A1.5kW
EA180P-2R5-2B2.5A400WEA180P-8R5-3B8.5A2.0kW
EA180P-4R8-2B4.8A750W~1000WEA180P-013-3B13A2.9~3.0kW
EA180P-6R2-2B6.2A1000WEA180P-017-3B17A4.0kW
EA180P-011-2B11A1.5kWEA180P-022-3B22A5.5kW
---EA180P-028-3B28A7.5kW
---EA180P-038-3B38A15kW
---EA180P-052-3B52A22kW
---EA180P-062-3B62A29kW
Single-phase   AC 220VThree-phase   AC 380V

Motor Model.jpg

①   Product series② Motor flange   size③ Rated output   power
SER: Standard servo motor
    SES: High performance servo motor
    SEM: High-power servo motor
04:   40mm
    06: 60mm
    08: 80mm
    09: 86mm
    11: 110mm
    13:130mm
    18: 180mm
    20: 200mm
    26: 266mm
005:   50W
    0R1: 100W
    0R2: 200W
    0R4: 400W
    0R7: 750W
    1R0: 1000W
    1R5: 1500W
    2R0: 2000W
    3R0: 3000W
    4R4: 4400W
    5R5: 5500W
    7R5: 7500W
    011: 11000W
④ Rated motor speed
10: 1000rpm
    15: 1500rpm
    20: 2000rpm
    25: 2500rpm
    30: 3000rpm
⑦ Inertia type
⑤ Voltage levelA: Low   inertia
    B: Medium inertia
    C: High inertia
2: 220V
    3: 380V
⑨ Optional
⑥ Encoder type⑧   Shaft endNone:No   option
    1: With brake (DC24V)
    2: With oil seal
    3: With a brake and oil seal
A: 2500ppr incremental
    B: 17-bit incremental
    H: 17-bit magnetic incremental
    F: 23-bit absolute
    G*1: 2500ppr wire-saving encoder
X:   Shaft without keyway*1
    Y: Shaft with U-shaped keyway and screw hole*2
    Z: Shaft with double round keyways and screw hole
⑩ Special specifications


Installation Dimension
Slide to the left to view >
ItemDescription
Antirust treatmentBefore   installation, please wipe off the "rust inhibitor" on the extension   of the servo motor shaft before relevant antirust treatment.
Notes for encoders

•The shaft extension shall not   be impact during installation, otherwise the encoder inside will be cracked.


Pulley installation•When installing pulleys on a servo   motor shaft with a keyway, use screw holes at the shaft end. In order to   install the pulley, first insert the double-headed nail into the screw hole   of the shaft, use a washer on the surface of the coupling end, and gradually   fasten the pulley with a nut.
•For servo motor shaft with a keyway, install it with the screw   hole at shaft end. For a shaft without keyway, wear coupling or similar   methods can be adopted.
•When the pulley is removed, a pulley remover should be used to   prevent impact on the bearing.
•In order to ensure safety, a protective cover or similar device   shall be installed in the rotating area.



Centering•Please   use a coupling to connect the device with the machine and keep the axis of   the servo motor in a straight line with that of the machinery. The radial   runout of the coupling should not be greater than 0.03 mm. If centering is   not sufficient, vibration will occur, which may damage bearings, encoders,   etc.
Installation direction•Servo   motor can be installed in a horizontal or vertical direction. Please do not   install the device obliquely, otherwise it may cause wearing of motor   bearing.
Countermeasures for oil and waterFor   use in places with water dripping, please confirm the protection rating of   the servo motor before use (except the shaft penetration part). For use in   places where oil drips to the shaft penetration part, please be sure to use   servo motors with oil seals.
Service conditions for servo motors with oil   seals:
•Please make sure that the oil level is lower   than the lip of the oil seal during use.
•Please use the oil seal in a state where the   oil spatter can be kept in a good degree.
•When the servo motor is installed vertically   upward, please be careful to prevent oil accumulation on the oil seal lip.



Cable stress conditionDo not   bend the cables excessively or apply tension to them, especially for the 0.14   mm2 or 0.2 mm2 core wires of the   encoder signal cables, which is very thin. So please do not stretch them too   tightly during wiring and use.When installing in the tow chain,   high-flexibility tow chain cables must be selected.
Connector handlingFor   the connector part, please pay attention to the following:
•When connecting a connector, please make sure   that there is no foreign matter such as garbage or metal debris in the   connector.
•When connecting the connector to the servo   motor, be sure to connect from the side of the main circuit cable of the   servo motor first, and the main cable must be reliably grounded. Otherwise,   the encoder may fail due to the potential difference with PE.
•When wiring, please make sure the pins are   arranged correctly.
•The connector is made of resin. Do not apply   impact to the connector, otherwise it may be damaged.
•Always hold the main body of the servo motor   during handling while the cables remain connected. Otherwise, the connector   may be damaged or the cables may be broken.
•If a cable needs to be bent, due care should   be taken during wiring so as not to cause pressure or tension on the   connector, otherwise damage or poor contact of the connector may be caused.
